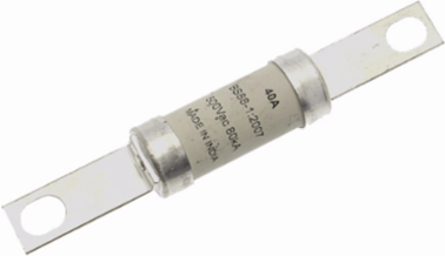

B-Line BD40 Low Voltage Fuse 500 Vac, 250 Vdc, 40A, 80 kAIC, Class C gL/gG
- MPN: BD40
- UPC: 051712843614
- PPN: B-L-BD40
CAD
$2.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Fuse 500 Vac, 250 Vdc, 40A, 80 kAIC, Class C gL/gG
Documentation & Downloads
Specifications
General
| UPC | 051712843614 |
|---|---|
| Product Length/Depth | 129 mm |
| Product Width | 21 mm |
| Warranty | Not Applicable |
| EAN | 5027590492164 |
|---|---|
| Product Height | 21 mm |
| Product Weight | 66.9 g |
| Compliances | Contact factory |
Electrical Rating
| Amperage Rating | 40 A |
|---|---|
| Interrupt rating | 80 kAIC |
| Voltage rating | 500 V |
| Breaking capacity | 80 kA |
|---|---|
| Rated switching capacity | 80 A |
| Voltage type | AC |
Physical Details
| Packaging type | Standard |
|---|
General Information
| Class | Class C gL/gG |
|---|---|
| Fuse indicator | None |
| Insulated metal gripping lugs (IMGL) | No |
| Construction size | 21 x 129 mm |
|---|---|
| Fuse shape | Center bolted tags |
| Utilization category | gL/gG (cable protection/equipment protection) |
