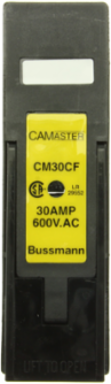

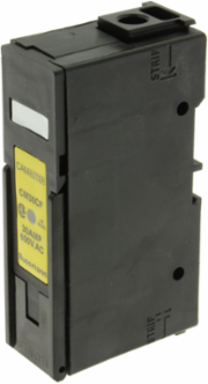

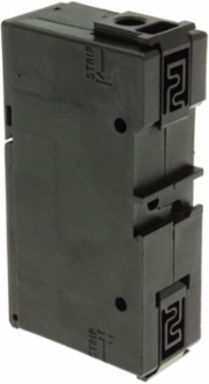

Bussmann CM30CF Low Voltage Fuse Holder, 1 Pole, 30A, 690V, 31.8MM Width, DIN Rail Mounted
- MPN: CM30CF
- UPC: 051712551403
- PPN: BUS-CM30CF
CAD
$244.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Low Voltage Fuse Holder, 1 Pole, 30A, 690V, 31.8MM Width, DIN Rail Mounted
Features
- Featuring a specialized mechanical cam-action design, the CAMaster carrier enables smooth, tool-free fuse insertion and extraction while maximizing physical contact pressure against the base terminals when closed. This high-integrity contact significantly improves overall electrical performance, drastically lowering contact resistance and preventing localized overheating that can lead to premature fuse fatigue.
- Built with a robust 690V AC voltage rating and a 30-amp capacity, this single-pole holder delivers highly reliable circuit isolation for high-demand electrical assemblies, machine control panels, and original equipment manufacturer (OEM) applications. It easily withstands severe power surges, safeguarding critical components from catastrophic fault currents and keeping your assembly line online.
- Designed for ultimate field flexibility, the chassis accommodates both direct back-panel screw fastening and seamless snap-on integration onto standard 35mm DIN rails. This adaptable mounting architecture simplifies layout modifications for control panel builders, accelerating installation speeds and optimizing space inside dense electrical enclosures.
- Outfitted with a high-visibility neon status indicator, this holder gives maintenance crews immediate visual confirmation of a cleared fuse without requiring multi-meter probing. Additionally, the field-convertible 2/3-pole ganging capability allows for simultaneous multi-phase circuit isolation, maximizing operator safety during lockout-tagout procedures.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 1
- Width
- 31.8 mm
- Height
- 93.7 mm
- Mounting
- DIN rail, screw
- Bus-mounting Type
- Yes
Voltage690 V
TypeFuse accessory
Length60 mm
Weight163 g
Connection TypeScrewed terminal
Special Features2/3 Pole ganging, Unique cable termination, Neon indicator, Dual mounting capability
