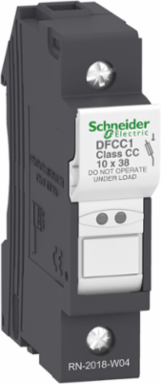

Schneider Electric DFCC1 TeSys DF Modular Fuse Carrier 1P 30A 600V AC IP20

MPN: DFCC1
PPN: SCH-DFCC1
UNSPSC: 39121624

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$43.06

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (UL recognized, CSA).

Features

To be used with class CC fuse links up to 30A and short circuit current up to 200kA at 600V
Dual positions locking system for easy DIN-rail mounting
Prevent damage to your installation
Reduce risk for equipment and personnel
Improve production uptime

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	61 mm

Weight	44 g

Complementary Attributes

Ie Rated Operational Current	30 A
Ui Rated Insulation Voltage	600 V AC
Short Circuit Withstand	200 kA 600 V UL 512

Ue Rated Operational Voltage	600 V AC
Uimp Rated Impulse Withstand Voltage	6 kV

Important Information Attributes

Tightening Torque	2 N.m PZ2, 2 N.m flat Ø 5.5 mm
Certificate Agency	UL Recognized, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.004436666666666666
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.5 kg CO2 eq., 0.4638333333333333
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Use Carbon Footprint	0.925
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Control Type	toggle padlockable
Energy Efficiency Optimized	False
Fuse Type	, CC, CC
Mounting Support	35 mm symmetrical DIN rail
Power Dissipation In W	3 W maximum power dissipation by fuse
Product Name	TeSys DF
Quantity Per Set	set of 12
Range Of Product	TeSys fuse carriers
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	17.5 mm
Customs Code	8536100040
Functional Unit Description	Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
Functional Unit Unit	Unit

Connections Terminals	screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigidscrew clamp terminals 1 1-16 mm²flexible with or without
Carbon Footprint Of The Distribution Phase A4	0.015308333333333332, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.00012283333333333333, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.9 kg CO2 eq., 0.925
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV fuse - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1919
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	DFCC
Device Short Name	DFCC
Fire Resistance	960 °C IEC 60695-2-1
Mounting Position	vertical +/- 23°)
Number Of Poles	1P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	fuse carrier
Range	TeSys
Returnability	Yes
Sustainable Packaging	No
Utilisation Category	AC-20B IEC 60947-3
Database Version	2016-11
Height Nominal	79.5 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Storage	-40-70 °C-40-70 °C
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2020-10-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Operation	-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.4087011666666667
Environmental Disclosure	ENVPEP2010021EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
