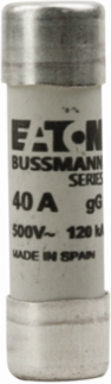

Bussmann C14G40 Eaton Bussmann series low voltage cylindrical fuse, 500V, 40A, CH14 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, 14 x 51 mm CH Modular fuse holder, Ceramic body, Silver-plated copper endcap
Bussmann C14G40 Eaton Bussmann series low voltage cylindrical fuse, 500V, 40A, CH14 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, 14 x 51 mm CH Modular fuse holder, Ceramic body, Silver-plated copper endcap
- MPN: C14G40
- UPC: 051712754415
- PPN: BUS-C14G40
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$43.82/ EA
Description
Eaton Bussmann series low voltage cylindrical fuse, 500V, 40A, CH14 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, 14 x 51 mm CH Modular fuse holder, Ceramic body, Silver-plated copper endcap
Specifications
General
- UPC
- 051712754415
- Product Length/Depth
- 51 MM
- Product Width
- 14.3 MM
- Warranty
- 1 year limited
- Certifications
- IEC 60269
EAN5027590494076
Product Height51 MM
Product Weight51 G
CompliancesContact factory
Specifications
- Fuse Indicator
- CH14 fuse holder
- Connection
- Ferrule end X ferrule end
- Material Type
- Ceramic body, Silver-plated copper endcap
- Amperage Rating
- 40A
- Utilization Category
- gL/gG (cable protection/equipment protection)
- Fuse Type
- Cylindrical
- Fuse Shape
- cylindrical
- Amperage Rating Numeric
- 40 A
- Frequency Rating Minimum
- 62 HZ
- Voltage Rating
- 500V
- Voltage Rating Numeric
- 500 V
- Packaging Type
- Standard
Construction Size14 x 51 mm
Quantity10 per package
Release CharacteristicOther
Frequency Rating Maximum45 HZ
Mounting14 x 51 mm CH Modular fuse holder
Typefuse
Breaking Capacity120 KA
With StrikerNo
ClassClass C gL/gG
Applicationfor industrial applications
Voltage TypeAC
