Bussman

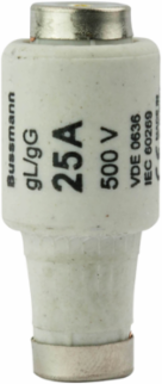

Bussman 25D27 Low Voltage D Fuse 25A 500V Time-Lag Ceramic Body Class C

Low Voltage D Fuse 25A 500V Time-Lag Ceramic Body Class C
  • MPN: 25D27
  • UPC: 051712833158
  • PPN: BUS-25D27

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$18.05/ EA

Specifications

Specifications

Height
50 MM
Width
22 MM
Type
fuse
Voltage Rating
500V
Amperage Rating
25A
Interrupt Rating
100 kAIC
Color
Yellow
Material Type
Ceramic body
Quantity
25 per package
Fuse Type
Time delay
Breaking Capacity
100 KA
Utilization Category
gL/gG (cable protection/equipment protection)
Length50 MM
Weight50 G
ApplicationE27 | for domestic and general industrial applications
Voltage Rating Numeric500 V
Amperage Rating Numeric25 A
ClassClass C gL/gG
Construction SizeDII
Packaging TypeStandard
Fuse IndicatorNon Indicating
Response Timetime-delay
Release CharacteristicTime-lag
ConstructionD2
