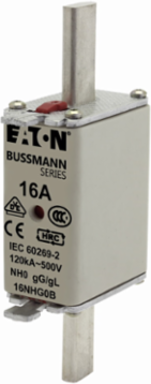

Bussmann 16NHG0B Low Voltage NH Fuse 500V 16A 120 kAIC Class C gL/gG
- MPN: 16NHG0B
- UPC: 051712232425
- PPN: BUS-16NHG0B
CAD
$123.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage NH Fuse 500V 16A 120 kAIC Class C gL/gG
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Combination fuse status indicator |
|---|---|
| Construction | NH0 |
| Insulated metal gripping lugs (IMGL) | No |
| Amperage Rating | 16 A |
| Utilization category | gL/gG (cable protection/equipment protection) |
| Rated switching capacity | 120 kA |
| Breaking capacity | 120 kA |
| Class | Class C gL/gG |
| Application | industrial |
| Interrupt rating | 120 kAIC |
|---|---|
| Construction size | NH0 |
| Quantity | 3 |
| Frequency rating - max | 62 Hz |
| Type | fuse |
| Fuse shape | Knife blade contacts |
| Frequency rating - min | 45 Hz |
| Voltage rating | 500 V |
| Voltage type | AC |
General
| UPC | 051712232425 |
|---|---|
| Product Length/Depth | 125 mm |
| Product Width | 30 mm |
| Compliances | RoHS Compliant |
| EAN | 5027590437790 |
|---|---|
| Product Height | 58 mm |
| Product Weight | 299.3333333 g |
