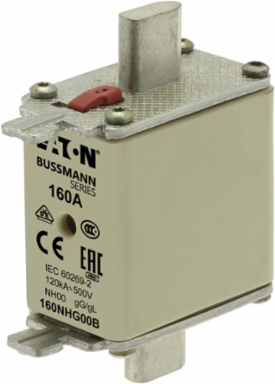

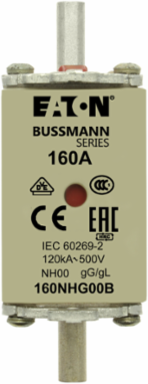

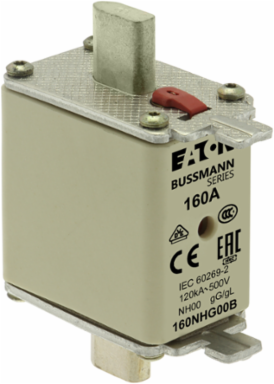

Bussmann 160NHG00B Low Voltage NH Fuse 160A 500V 120KA Breaking Capacity
- MPN: 160NHG00B
- UPC: 051712625883
- PPN: BUS-160NHG00B
CAD
$92.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage NH Fuse 160A 500V 120KA Breaking Capacity
Documentation & Downloads
Specifications
Key Specifications
- Height
- 58 MM
- Width
- 30 MM
- Type
- fuse
- Application
- industrial
- Voltage Rating Numeric
- 500 V
- Amperage Rating Numeric
- 160 A
- Class
- Class C gL/gG
- Construction Size
- NH00
- Packaging Type
- Standard
- Fuse Indicator
- Combination fuse status indicator
- Breaking Capacity
- 120 KA
- Frequency Rating Maximum
- 62 HZ
- Fuse Shape
- square body with knife blade contacts
- Utilization Category
- gL/gG (cable protection/equipment protection)
- Rated switching capacity
- 120 A
Length79 MM
Weight196.667 G
Special FeaturesLive gripping lug
Voltage Rating500V
Amperage Rating160A
Interrupt Rating120 kAIC
ConnectionBlade end connection
Material TypeCeramic body
Quantity3 per package
Fuse TypeSquare-body with knife blade contact
Contact MaterialMetal plated copper contact plate
Frequency Rating Minimum45 HZ
Insulated Metal Gripping Lugs (IMGL)No
Voltage TypeAC
