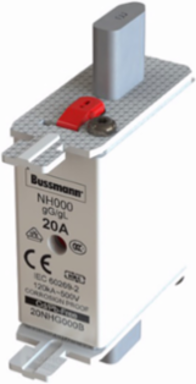

Bussmann 20NHG000B Low Voltage NH Fuse 20A, 500V, 120 kAIC, Ceramic Body, Class C gL/gG
- MPN: 20NHG000B
- UPC: 051712625784
- PPN: BUS-20NHG000B
CAD
$66.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage NH Fuse 20A, 500V, 120 kAIC, Ceramic Body, Class C gL/gG
Specifications
Key Specifications
| Interrupt Rating | 120 kAIC |
|---|---|
| Amperage Rating | 20A |
| Fuse Type | Square-body with knife blade contact |
| Amperage Rating Numeric | 20 A |
| Voltage Rating | 500V |
| Special Features | Live gripping lug |
| Construction | NH000 |
| Quantity | 3 per package |
| Utilization Category | gL/gG (cable protection/equipment protection) |
| Fuse Shape | square body with knife blade contacts |
| Frequency Rating Minimum | 45 HZ |
| Application | industrial |
| Voltage Type | AC |
| Insulated Metal Gripping Lugs (IMGL) | No |
|---|---|
| Frequency Rating Maximum | 62 HZ |
| Rated switching capacity | 120 KA |
| With Striker | No |
| Fuse Indicator | Combination fuse status indicator |
| Construction Size | NH000 |
| Connection | Blade end connection |
| Material Type | Ceramic body |
| Type | fuse |
| Breaking Capacity | 120 KA |
| Class | Class C gL/gG |
| Voltage Rating Numeric | 500 V |
| Packaging Type | Standard |
General
| UPC | 051712625784 |
|---|---|
| Product Length/Depth | 79 MM |
| Product Width | 21 MM |
| Warranty | Not Applicable |
| Certifications | UL Listed |
| EAN | 5027590468046 |
|---|---|
| Product Height | 51 MM |
| Product Weight | 130.667 G |
| Compliances | RoHS Compliant |
