Bussmann

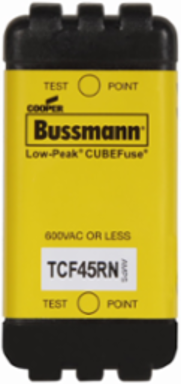

Bussmann TCF45RN Eaton Bussmann series TCF fuse, Finger safe, 600 Vac/300 Vdc, 45A, 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc, Non-Indicating, Time delay, inrush current withstand, Class CF, CUBEFuse, Glass filled PES

Eaton Bussmann series TCF fuse, Finger safe, 600 Vac/300 Vdc, 45A, 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc, Non-Indicating, Time delay, inrush current withstand, Class CF, CUBEFuse, Glass filled PES
  • MPN: TCF45RN
  • UPC: 051712220996
  • PPN: BUS-TCF45RN

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$71.87/ EA

Description

Eaton Bussmann series TCF fuse, Finger safe, 600 Vac/300 Vdc, 45A, 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc, Non-Indicating, Time delay, inrush current withstand, Class CF, CUBEFuse, Glass filled PES

Specifications

Specifications

Fuse Indicator
Non Indicating
Interrupt Rating
300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Color
Black body
Response Time
10 s at 500%
Amperage Rating
45A
Mounting
35 mm Din Rail, chassis
Type
Time-delay fuse
Amperage Rating Numeric
45 A
Class
Class CF
Application
Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
Packaging Type
Standard
Special FeaturesFinger safe
Number Of ElementsDual
ConnectionBlade End
Material TypeGlass filled PES
Frequency Rating Maximum60 HZ
Fuse TypeTime-Delay, class CF
Used WithTCFH60N, CCP2-3-60CF
Frequency Rating Minimum50 HZ
Voltage Rating600 Vac, 300 Vdc
Voltage Rating Numeric600 V

General

UPC
051712220996
Product Height
1.9 IN
Product Weight
.17 LB
Compliances
CE Marked
Product Length/Depth2.13 IN
Product Width1 IN
WarrantyNot Applicable
CertificationsUL Listed
