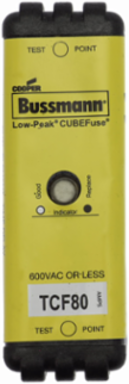

Bussmann TCF80 Time-Delay Fuse, 80A, 600 Vac/300 Vdc, Finger Safe, 2.125 Inch Height
- MPN: TCF80
- UPC: 051712618168
- PPN: BUS-TCF80
CAD
$158.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Time-Delay Fuse, 80A, 600 Vac/300 Vdc, Finger Safe, 2.125 Inch Height
Specifications
Key Specifications
- Fuse Indicator
- With Indicator
- Interrupt Rating
- 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
- Color
- Black body
- Response Time
- 10 s at 500%
- Amperage Rating
- 80A
- Mounting
- 35 mm Din Rail, chassis
- Type
- Time-delay fuse
- Amperage Rating Numeric
- 80 A
- Class
- Class CF
- Application
- Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
- Packaging Type
- Standard
Special FeaturesFinger safe
Number Of ElementsDual
ConnectionBlade End
Material TypeGlass filled PES
Frequency Rating Maximum60 HZ
Fuse TypeTime-Delay, class CF
Used WithTCFH100N, CCP2-3-100CF
Frequency Rating Minimum50 HZ
Voltage Rating600 Vac, 300 Vdc
Voltage Rating Numeric600 V
General
- UPC
- 051712618168
- Product Length/Depth
- 3.01 IN
- Product Width
- 1 IN
- Warranty
- Not Applicable
- Certifications
- UL Listed
EAN5027590228466
Product Height2.125 IN
Product Weight.284 LB
CompliancesCE Marked
