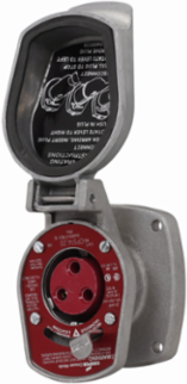

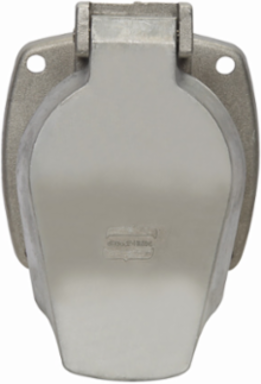

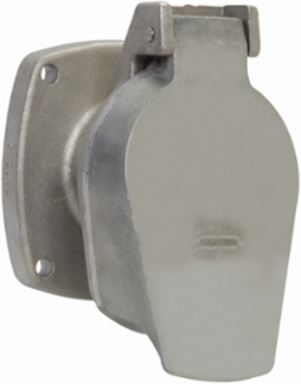

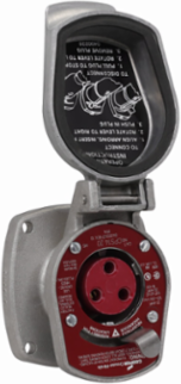

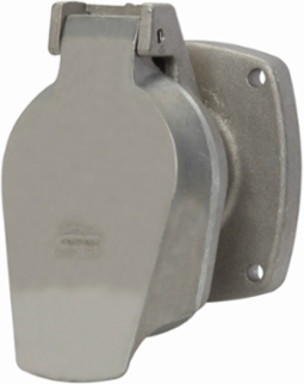

Crouse-Hinds CPS14 20 Arktite Receptacle Assembly 20A, 3/4 Inch, Dead End, Brass Contacts, 1 hp
- MPN: CPS14 20
- UPC: 782274178707
- PPN: CRH-CPS14 20
CAD
$1258.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Arktite Receptacle Assembly 20A, 3/4 Inch, Dead End, Brass Contacts, 1 hp
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 20 A
- Back box style
- Dead end
- Receptacle style
- Spring door
- Horsepower
- 1 hp
- Material
- Copper-free aluminum
- Special features
- Factory sealed
ConfigurationTwo-wire, three-pole
Trade size3/4"
Voltage rating125-250 Vac/18 Vdc
Frequency rating60-400 Hz
Contact materialBrass
TypeDelayed action circuit breaking
Certifications And Compliances
- Area classification
- Hazardous/Classified Locations
- NEC hazardous rating
- Class I, Division 1
Standards typeNEC/CEC
General
- UPC
- 782274178707
- Product Height
- 4.81 in
- Product Weight
- 3.85 lb
Product Length/Depth3 in
Product Width3.5 in
