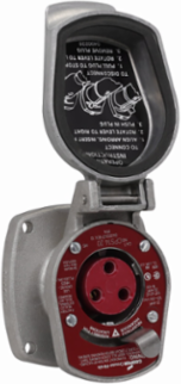

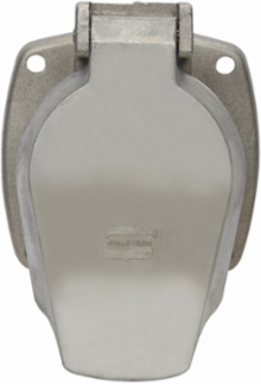

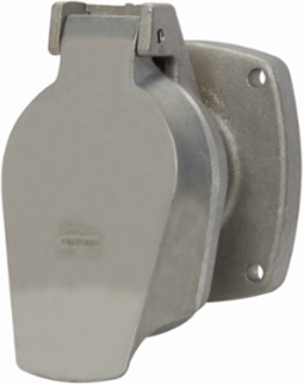

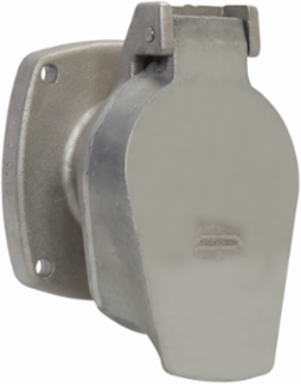

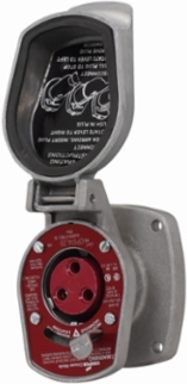

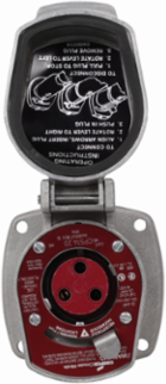

Crouse-Hinds CPS14 21 20A Arktite CPS Receptacle Assembly, 3/4 Inch, Brass Contacts, 1 HP, Delayed Action Circuit Breaking
- MPN: CPS14 21
- UPC: 782274178806
- PPN: CRH-CPS14 21
CAD
$1278.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20A Arktite CPS Receptacle Assembly, 3/4 Inch, Brass Contacts, 1 HP, Delayed Action Circuit Breaking
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 20 A
- Back box style
- Through feed
- Receptacle style
- Spring door
- Horsepower
- 1 hp
- Material
- Copper-free aluminum
- Special features
- Factory sealed
ConfigurationTwo-wire, three-pole
Trade size3/4"
Voltage rating125-250 Vac/18 Vdc
Frequency rating60-400 Hz
Contact materialBrass
TypeDelayed action circuit breaking
General
- UPC
- 782274178806
Product Weight4 lb
Certifications And Compliances
- Area classification
- Hazardous/Classified Locations
- NEC hazardous rating
- Class I, Division 1
Standards typeNEC/CEC
