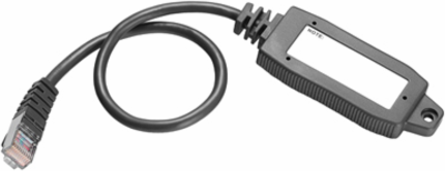

Weidmuller 1241430000 EBR-MODULE RS232
- MPN: 1241430000
- PPN: WDM-1241430000
CAD
$198.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Configuration module, IP40, 0 °C...60 °C
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 32.5 mm |
|---|---|
| Height | 12 mm |
| Depth | 97 mm |
| Net weight | 50 g |
| Width (inches) | 1.28 inch |
|---|---|
| Height (inches) | 0.472 inch |
| Depth (inches) | 3.819 inch |
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -20 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 70 °C |
Guarantee
| Time interval | 5 years |
|---|
Classifications
| ETIM 6.0 | EC000734 |
|---|---|
| eClass 9.0 | 19-17-92-90 |
| eClass 10.0 | 19-17-92-90 |
| ETIM 7.0 | EC000734 |
|---|---|
| eClass 9.1 | 19-17-01-25 |
Technical Data
| Cable length | 0.35 m |
|---|---|
| Protection degree | IP40 |
| Housing main material | PVC casting |
|---|---|
| Type of fixing | M4 screw (< 4 mm) |
Emc Conformity And Approvals
| EMC standards | FCC Part 15, CISPR (EN55022) Class A, EN 61000-4-2 (ESD), Stage 2, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), Stage 3, EN 61000-4-5 (surge voltage), Stage 3, EN 61000-4-6 (CS), Stage 3 |
|---|
Power Supply
| Connection type | RJ45-Port, RS232 |
|---|
