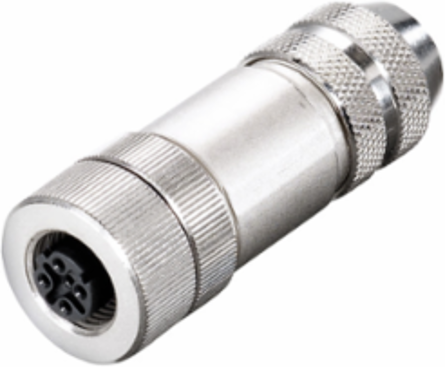

Weidmuller 1892130000 SAIBM-4/8S-M12-4P D-COD
- MPN: 1892130000
- PPN: WDM-1892130000
CAD
$18.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Electrical Properties
- Insulation strength
- 108 Ω
Rated voltage250 V
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 48 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate No. (cURus)E307231
General Info
- Number of poles
- 4
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Contact surface
- Gold-plated
- Sheath diameter, max.
- 8 mm
- Plugging cycles
- ≥ 100
Housing main materialCuZn
Connection threadM12
Sheath diameter, min.6 mm
Protection degreeIP67
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable glands
- PG 9
- Coding
- D
- Connection cross-section, min.
- 0.14 mm²
- Housing main material
- CuZn
- Number of poles
- 4
- Pollution severity
- 3
- Rated current
- 4 A
- Shield connection
- Yes
- Threaded ring material
- Diecast zinc
Cable diameter, min.6 mm
CategoryCat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Connection cross-section, max.0.75 mm²
Contact surfaceGold-plated
Insulation strength108 Ω
Plugging cycles≥ 100
Protection degreeIP67
Rated voltage250 V
Temperature range of housing-40 … +85 ° C
Type of connectionScrew connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-40 °C
