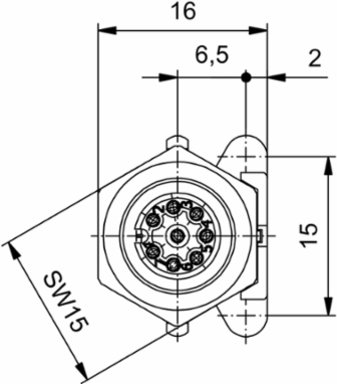

Weidmuller 2421820000 SAIE-M12B-8-H10TL
- MPN: 2421820000
- PPN: WDM-2421820000
CAD
$16.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

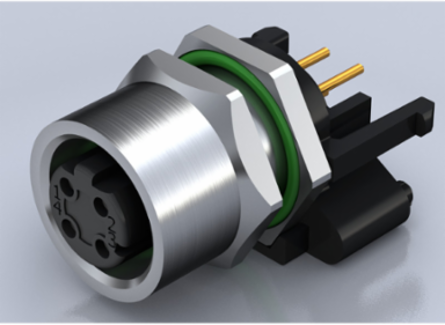

Built-in plugs, M12, M 12, Number of poles: 8, Rear panel mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 18 g
Technical Data Of Pcb Plug-In Connector
- Coding
- A

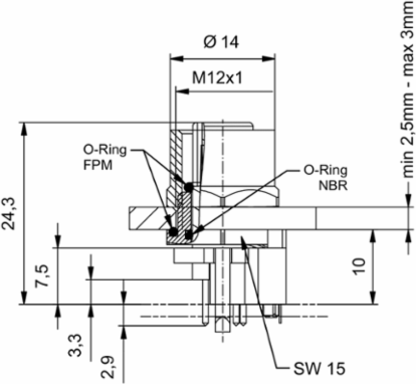

- Mounting height
- 10 mm

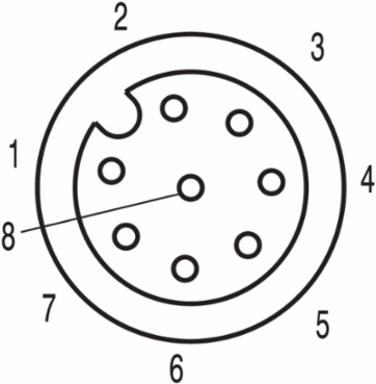

- Number of poles
- 8
- Type of mounting
- Rear panel mounting
- Rated current
- 2 A
- Protection degree
- IP67
- Housing main material
- CuZn, nickel-plated
- Tightening torque
- M12: 0.8 Nm
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Material of the flange-mounted housing
- Nickel-plated CuZn
HousingsM12 socket
Mounting threadM 12
Shield connectionNo
Rated voltage30 V
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM12
Insulation strength100 MΩ
Plugging cycles≥ 100
Lock nut materialNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles8
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
