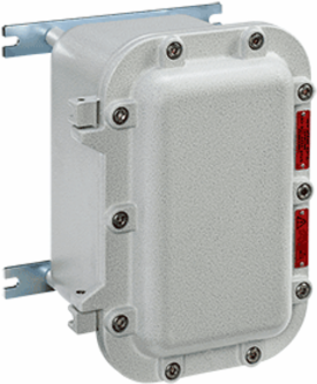

nVent Hoffman EJB3A Junction Box 10.94 x 11.18 x 8.41 Inch, Aluminum, ATEX Certified
- MPN: EJB3A
- UPC: 783510289638
- PPN: HOF-EJB3A
CAD
$1659.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EJB series junction boxes are enclosures applicable for Zone 1, 2, 21 or 22 with ATEX and IECEx certifications. They can be used as junction boxes with or without terminals or for installation of electrical equipment such as circuit breakers, signals, disconnectors, remote control switches or transformers. Body and cover can be drilled and threaded according to customers’ specification. In accordance with rules, Hoffman only can perform the drilling.ed and threaded according to customers’ specifications. In accordance with rules, Hoffman must perform the drilling.
Features
- Low copper aluminum alloy and stainless steel bolts and screws for corrosion resistance Aluminum alloy passes the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11 (salt mist tests) • Internal mounting panel • Body and cover can be drilled and threaded according to customers’ specification
- Cast hinges for robust construction (except for EJB-55)
- High temperature-resistant silicone gasket provides IP66 / 67 rating
- Stainless steel bolts and screws
- Electrogalvanized steel mounting bracket
- Epoxy coating RAL 7035 (Light grey) coating
- Aluminum alloy passes the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11 (salt mist tests)
- Internal mounting panel
- Body and cover can be drilled and threaded according to customers’ specifications
Documentation & Downloads
Specifications
Key Specifications
- Model Code
- 28963
- Product Weight lbs.
- 38.79
- Catalog Number
- EJB3A
- B in.
- 11.18
- X in.
- 11.02
- Z in.
- 8.41
- Certifications
- II 2(1) GD Ex d [ia] IIB Ex tD A21 T5/T6 IP 65/66/67 || II 2GD Ex d IIB+H2 T6,T5, T4 Gb Ex tb IIIC T85°C, T100°C, T135°C Db || IP66/67 || II 2(1) GD Ex d [ia Ga] IIB+H2 T6, T5 Gb Ex tb [ia Da] IIIC T85°C, T100°C Db IP66/67 || CESI 00 ATEX 036U (Component) || CESI 01 ATEX 026 (Terminal box) || CESI 01 ATEX 027 (Control, command and signaling units) || CESI 02 ATEX 073 (Interface units) || CESI 03 ATEX 015 (Unit with dischargers) || IECEx TSA 06.0011 - GOST R - BRAZILIAN || GOST-R, INMETRO, Australia certifications available || Ambient Temperature: -50 C to +60C
MaterialAluminum
Product Weight kg17.60
A in.14.33
C in.10.94
Y in.7.87
Industry StandardsATEX Directive 94/9/EC || EN 60079-0 || EN 60079-1 || EN 60079-31 || EN 60079-11 || EN 60079-26 || EN 60529 || EN 60439-1
