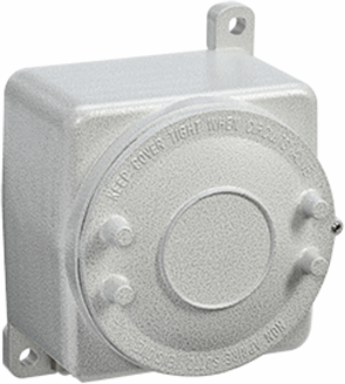

nVent Hoffman GUB02 Hazardous Location Junction Box, 9.06 x 5.91 x 3.17 Inch, Aluminum, ATEX Certified
- MPN: GUB02
- PPN: HOF-GUB02
CAD
$726.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
GUB series junction boxes are enclosures applicable for Zone 1, 2, 21 or 22 with ATEX and IECEx certifications. They have a screw cover and are used as junction boxes with or without terminals or for installation of electrical equipment such as fuses, relays, disconnectors, transformers, or remote control switches. Body can be drilled and threaded according to customers’ specifications. In accordance with rules, Hoffman must perform the drilling.
Features
- Low copper aluminum alloy for corrosion resistance
- Neoprene gasket provides IP66 rating
- Mounting lugs for easy installation
- Epoxy coating RAL 7035 (Light grey) coating
- Internal mounting panel
- Body can be drilled and threaded according to customers’ specifications
Documentation & Downloads
Specifications
Key Specifications
- Model Code
- 28985
- Product Weight lbs.
- 17.70
- Catalog Number
- GUB02
- B in.
- 9.06
- X in.
- 5.91
- Z in.
- 3.17
- Certifications
- II 2 GD Ex d IIC Gb Ex tb IIIC Db IP66 || II 2 GD Ex d IIC T6, T5 Gb Ex tb IIIC T85°C, T100°C Db IP66 || II (1) GD Ex d [ia Ga] IIC T6, T5 Gb Ex tb [ia Da] IIIC T85°C, T100°C Db || IP66 || CESI 01 ATEX 034U (Component) || CESI 01 ATEX 035 (Terminal box) || CESI 01 ATEX 036 (Control, command and signalling units) || CESI 03 ATEX 174 (Interface units) || IECEx TSA 06.0012 - GOST R – BRAZILIAN || GOST-R, INMETRO, Austrailia certifications available
MaterialAluminum
Product Weight kg8.03
A in.9.06
C in.6.5
Y in.5.91
Industry StandardsATEX Directive 94/9/EC || EN 60079-0 || EN 60079-1 || EN 60079-31 || EN 60439-1 || EN 60079-11 || EN 60079-26 || EN 60529
