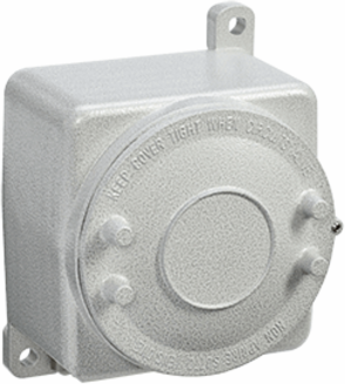

nVent Hoffman GUB03 Junction Box, 10.87 x 7.87 x 4.78 Inch, Aluminum, ATEX Certified, IP66

MPN: GUB03
UPC: 783510289867
PPN: HOF-GUB03

$1221.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

GUB series junction boxes are enclosures applicable for Zone 1, 2, 21 or 22 with ATEX and IECEx certifications. They have a screw cover and are used as junction boxes with or without terminals or for installation of electrical equipment such as fuses, relays, disconnectors, transformers, or remote control switches. Body can be drilled and threaded according to customers’ specifications. In accordance with rules, Hoffman must perform the drilling.

Features

Low copper aluminum alloy for corrosion resistance
Neoprene gasket provides IP66 rating
Mounting lugs for easy installation
Epoxy coating RAL 7035 (Light grey) coating
Internal mounting panel
Body can be drilled and threaded according to customers’ specifications

Documentation & Downloads

Specifications

Key Specifications

Model Code	28986
Product Weight lbs.	28.92
Catalog Number	GUB03
B in.	10.87
X in.	7.87
Z in.	4.78
Certifications	II 2 GD Ex d IIC Gb Ex tb IIIC Db IP66 \|\| II 2 GD Ex d IIC T6, T5 Gb Ex tb IIIC T85°C, T100°C Db IP66 \|\| II (1) GD Ex d [ia Ga] IIC T6, T5 Gb Ex tb [ia Da] IIIC T85°C, T100°C Db \|\| IP66 \|\| CESI 01 ATEX 034U (Component) \|\| CESI 01 ATEX 035 (Terminal box) \|\| CESI 01 ATEX 036 (Control, command and signalling units) \|\| CESI 03 ATEX 174 (Interface units) \|\| IECEx TSA 06.0012 - GOST R – BRAZILIAN \|\| GOST-R, INMETRO, Austrailia certifications available

Material	Aluminum
Product Weight kg	13.12
A in.	10.87
C in.	8.54
Y in.	7.87
Industry Standards	ATEX Directive 94/9/EC \|\| EN 60079-0 \|\| EN 60079-1 \|\| EN 60079-31 \|\| EN 60439-1 \|\| EN 60079-11 \|\| EN 60079-26 \|\| EN 60529
