nVent Hoffman EL1200DS-US LED Enclosure Light, 1200lm, 2.99 x 14.33 x 1.89 Inch, Black, Plastic

MPN: EL1200DS-US
UPC: 783510478933
PPN: HOF-EL1200DS-US
UNSPSC: 39121321

$544.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

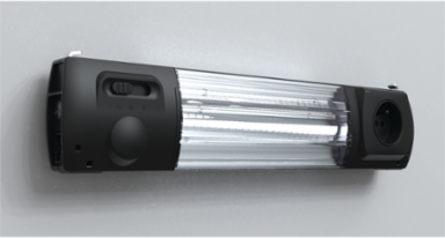

LED Enclosure Light with quick-install feature allows fitting to the 25mm hole pattern of enclosure profiles. This EL LED Enclosure Light With Socket B, 1200lm 100-240V, EL1200DS-US item measures 76x364x48mm with a material of Plastic color Black.

Features

Description: LED enclosure light specially designed for nVent HOFFMAN enclosures. Fast and tool-free assembly thanks to a latching hook system designed to fit the 25mm hole pattern on nVent HOFFMAN enclosures. May be fitted horizontally or vertically.
Please be advised that when using the clamp mechanism to mount these lights, they cannot be installed on the top rail of ProLine and ProLine G2 cabinet frames.

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	364
Works With	IEC
Protection Rating	IP20
Finish	Smooth
Lamp Type	LED
Color Temperature	4,000
Power	12
Input Voltage AC	100
Connection Type	3 Pole
Weight	0.7
Socket Included	Yes
Size	2.99 x 14.33 x 1.89 inch
Construction	EL LED Enclosure Light With Socket, 1200 lm, 100-125 VAC

Height (H)	76
Depth (D)	48
Enclosure Material	Plastic
Product Family	IEC General Accessories
Socket Type	Type B
Light Output	1,200
Light Color	Neutral White
Nominal Voltage	115
Hertz	50/60
Operating Temperature	-20
Motion Sensor Included	No
Material	Plastic
Color	Black
Consist of	Light 1200lm TPS + Socket
