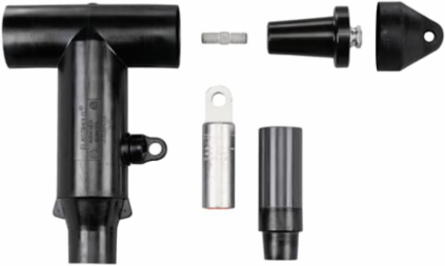

Thomas & Betts K656LR-L0300-S ELBOW KIT 600A DB 15/25KV
- MPN: K656LR-L0300-S
- UPC: 783786829880
- PPN: T-B-K656LR-L0300-S
- UNSPSC: 39121421
CAD
$917.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185. Cold-Shrinkable Jacket Seal Included.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amp Deadbreak Elbow Connection
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20090612
IncludesElbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
Special FunctionsFully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. Cold-Shrinkable Jacket Seal Included.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
