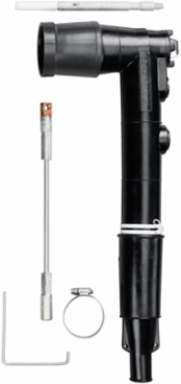

Thomas & Betts 273RLRJ-5270 ELBOW KIT,RLR,200ALB,25KV,W/O TP
- MPN: 273RLRJ-5270
- UPC: 783786091980
- PPN: T-B-273RLRJ-5270
- UNSPSC: 39121421
CAD
$951.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Loadbreak Replacement Elbow Connector without Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
Specifications
Additional Information
- Application
- Designed for connecting to and operating 25kV Class, 125kV BIL apparatus.
- Color
- Black
- Effective Date
- 19991213
- Includes
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart, Hose Clamp..
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Replacement Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm).
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NamePRIMARY CABLE ACC. 200 SEP CON
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
