Thomas & Betts 656LRTP-J2280 15KV 600A DB S-OP CONN TP J2280
- MPN: 656LRTP-J2280
- UPC: 783786776559
- PPN: T-B-656LRTP-J2280
- UNSPSC: 39121421
CAD
$1429.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

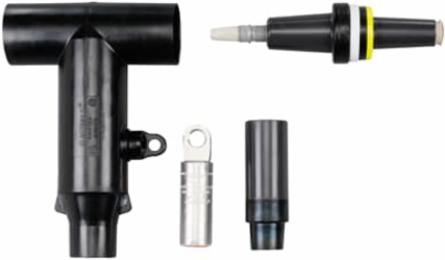

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 250 /Compacted Solid 300.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Additional Information
- Application
- Connect 600 Amp interface to 200 Amp Loadbreak Tap
- Color
- Black
- Effective Date
- 20080730
- Environmental Conditions
- All Weatheronditions °C
- Material
- Housing - EPDM Rubber
- Product Type
- Stick Op Reducing Tap Plug Connector with Test Point
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 kV
Brand / LabelElastimold
Current Rating600 to 200 A
Enclosure TypeYes, EPDM Rubber
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Special FunctionsReducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
