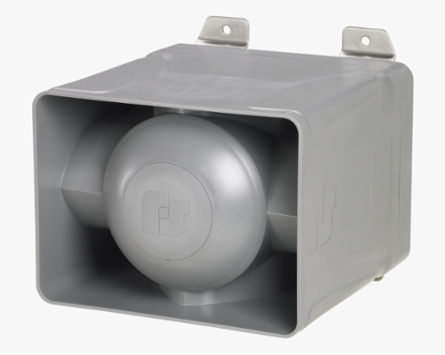

Electronic Horn, Dual Tone, UL and cUL, 120-240VAC
Federal Signal

Federal Signal EHORN-120-240 Electronic Horn, Dual Tone, UL and cUL, 120-240VAC

  • MPN: EHORN-120-240
  • UPC: 782979233510
  • PPN: FDS-EHORN-120-240
  • UNSPSC: 46171602

CAD

$4231.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Model eHorn is an electronic horn capable of producing two high decibel horn tone outputs from the same unit through internal amplification and tone circuitry.The Type 4X, IP66 housing is molded from glass reinforced polycarbonate plastic, making it resistant to ultra-violet light and ideal for indoor or outdoor use.Model eHorn can be used as a stand-alone, high output, audible warning device in any application where voice paging is not required.Typical applications include emergency warning, start and dismissal, general alarm and evacuation.

Features

  • Multiple operating voltages 24VDC or 120-240VAC
  • Produces one of two tones at three SPL (sound pressure levels)
  • Replicates Federal Signal 52 and 55/56 horn tones
  • Surface mount standard, U-bracket mount sold separately
  • Produces 96-117 dBa @ 10' (106-127 dBa @ 1m) depending on tone and voltage
  • Type 4X, IP66 enclosure
  • Marine Rated
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Gray
dBa 1 Meter
111-124
Availability
Contact Us for Availability
Operating Temp.
-40˚ to +150˚F (-40˚ to +66˚C)
Audible Signals Voltage
120-240VAC
Height
8.5 in, 21.59 cm
Weight11.7 lbs
Certification ListingUL, cUL
dBa 10 Ft101-114
Mount TypeSurface
Operating Voltage120-240 Vac
Depth8.5 in, 21.59 cm
Width8.93 in, 22.6822 cm
