Federal Signal 350TR-120 Vibratone Horn with Trim Ring, UL and cUL, 120VAC, Gray
Federal Signal 350TR-120 Vibratone Horn with Trim Ring, UL and cUL, 120VAC, Gray
- MPN: 350TR-120
- UPC: 782979214120
- PPN: FDS-350TR-120
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$299.39/ EA
Description

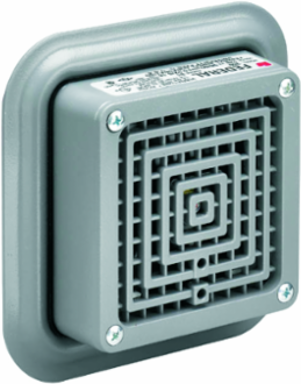

Model 350TR Vibratone® Horn produces a loud tone by the electro-mechanical vibration of the diaphragm. Its compact size, loud output and heavy-duty construction makes Model 350TR ideal for industrial and institutional signaling applications. It’s popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas.Model 350TR offers the benefits of quick and simple surface mount installation as each horn is supplied with a gasketed trim ring. Model 350TR is enclosed in a zinc die-cast housing and sealed with gray powder-coated paint.
Features
- 24VAC and 120VAC
- Produces 100 dBa @ 10' (110 dBa @ 1m)
- Coded or sustained tones
- Surface or flush mount
- Type 4X and Type 12 enclosure
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Gray
- dBa 1 Meter
- 110
- Availability
- Ships in 5 business days
- Operating Temp.
- -65˚ to +150˚F (-54˚ to +66˚C)
- Depth
- 5.61 in, 14.2494 cm
- Width
- 5.61 in, 14.2494 cm
Weight1.7 lbs
Certification ListingCSA, UL, cUL
dBa 10 Ft100
Operating Current Amps0.22
Audible Signals Voltage120VAC
Height5.61 in, 14.2494 cm
