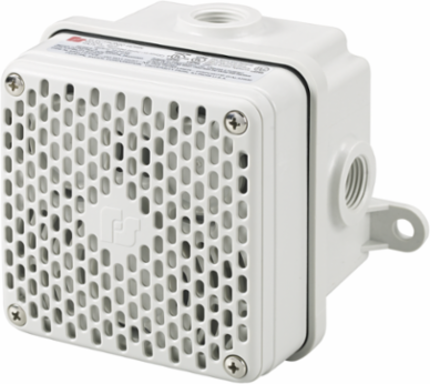

Federal Signal 450EWBX-024 Vibratone Electronic Horn, Hazardous Location, UL and cUL CID2, 12-24VDC
- MPN: 450EWBX-024
- UPC: 782979235743
- PPN: FDS-450EWBX-024
- UNSPSC: 46171602
CAD
$1027.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Model 450EWBX hazardous location electronic horn offers a patented electronic design that produces a very loud, clear and distinctive electronic tone. The model is capable of producing sustained tones or coded blasts through push button or PLC control devices without a duty cycle or interval limitations.The 450EWBX is ideal for general alarm, start and dismissal, coded paging and process control signaling in areas of high ambient noise levels.
Features
- No duty cycle
- Four wire terminal block and supervisory diode
- No detectable RF emissions in a 30-1000 MHz frequency range
- Type 4X enclosure
- IP69K compliant
- Marine Rated
- UL and cUL for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
- 450E horn is UL and ULC Canadian Listed for Fire Alarm use
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Body Color
- Gray
- dBa 1 Meter
- 100
- Availability
- Contact Us for Availability
- Operating Temp.
- -65˚ to +150˚F (-54˚ to +66˚C)
- Audible Signals Model Description
- 450ewbx
- Height
- 4.39 in, 11.1506 cm
Weight2.3 lbs
Certification ListingCSFM, Marine, UL, UL Fire, ULC Fire, cUL
dBa 10 Ft99
Mount TypeSurface
Operating Voltage12/24 Vdc
Depth4.39 in, 11.1506 cm
Width5.569 in, 14.14526 cm
