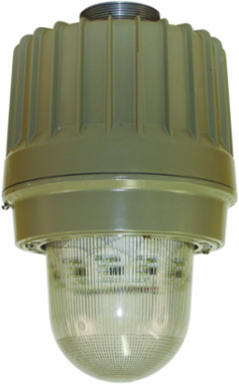

Killark EZL10030 LED High Bay/Low Bay Fixture, 100 Watt, 120-277 VAC, 10903 Lumens, Class I & II
Killark EZL10030 LED High Bay/Low Bay Fixture, 100 Watt, 120-277 VAC, 10903 Lumens, Class I & II
- MPN: EZL10030
- UPC: 783936131481
- PPN: HBL-EZL10030
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
EZL Series LED High Bay/ Low Bay, Hazardous Rated 100 Watt, 120-277 VAC 5000K, 10903 Lumens
Features
- Supplemental 20KA/10KV Surge Protection is standard for 120-277 VAC models & 10KA/10KV Surge Protection is standard for 347-480 VAC models.
- Explosion-proof with Traditional Industrial Appearance and Suitability
- Mounting choice – Pendant, ceiling, 25° stanchion or 90° wall mount, all with “wireless” design that allows fast, easy fixture installation or removal for maintenance
- Accessories – Available with or without guard, standard dome or angle reflector
- EZL LED Housings can be retrofitted to existing EZ splice boxes to upgrade from Incandescent, Fluorescent or HID
- Energy Savings – Less than 130 Watts of Power
- Long Life – 50,000 - 55,000 Maintenance Free Hours to 70% Initial Lumens
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K CCT range approx. 70 CRI
- Ambient suitability -40°C to 55°C
- Instant on – Including after power interruption
- World Voltage 120-277VAC 50/60Hz
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- Factory Sealed Construction – No external seal required
- Suitable for Paint Spray Booth Applications
- The EZL Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Specifications
Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Optic Type
- Glass Globe - Clear
- Weight
- 36 lb.
- Frequency Rating
- 50/60 Hz
- Wattage
- 100 W
- Description - Invoice
- 100W C1D1 LED Highbay 120-277VAC 50/60HZ
- Harmonization Code
- 9405429100
- MSDS Flag
- No
- Lumen Range
- 10,001-15,000 lm
- Light Source
- LED
- Series
- EZL Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936131481
Country of OriginUS
Lumens10903
Voltage Rating120-277 VAC
Finish TypePowder Epoxy Paint
Mounting TypeLuminaire Only
Class CodeD20
Freight Class Code10970009
Image Actual Or RepresentativeA
Sub Class CodeD20D201
Lumens Per Watt109
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
