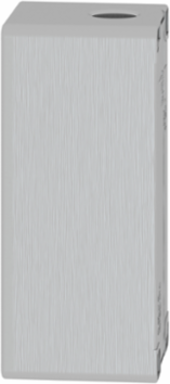

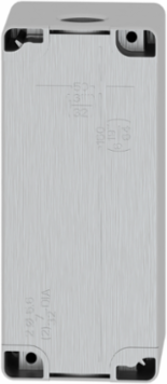

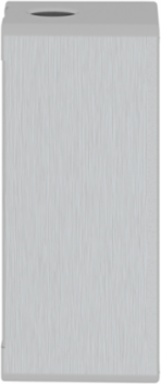

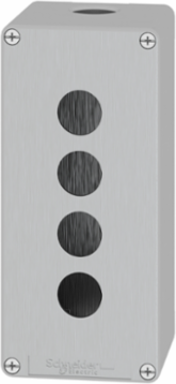

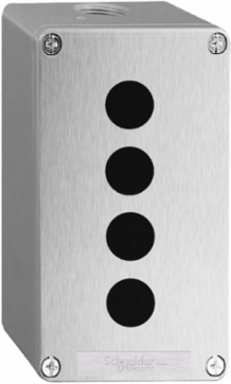

Schneider Electric XAPG39804 Harmony XAP Metal Control Station, 4 Cut-Outs, 22mm, IP65, 175x80x77mm
- MPN: XAPG39804
- PPN: SCH-XAPG39804
CAD
$174.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPG39804 is an empty enclosure with grey color (RAL7032). It has 4 cut-outs of diameter 22mm for 4 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. It has a wide range of operating temperatures from -25°C to 70°C. Its dimensions are 175mm height, 80mm wide, 77mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 and XB5 range of control and signaling units.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Morocco |
|---|
Physical Attributes
| Cad Overall Depth | 77 mm |
|---|---|
| Cad Overall Width | 80 mm |
| Color Of Cover | grey RAL 7032) |
| Cad Overall Height | 175 mm |
|---|---|
| Color Of Base Of Enclosure | grey RAL 7032) |
Important Information Attributes
| Cable Entry | cable gland, 1 x cable gland |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.1470861376, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0034586032, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-02-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | XAPG |
| Device Short Name | XAPG |
| Number Of Horizontal Rows | 4 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | die-cast empty control station |
| Range Of Product | Harmony XAP |
| Returnability | Yes |
| Software Version | EIME v5.9.1 |
| Thread Type | 3/4 NPT |
| Color Of Base Of Enclosure | grey RAL 7032) |
| Pep Code | ENVPEP2111017EN |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US |
| Number Of Cut-out | 4 cut-outs |
| Package Weight(Lbs) | 1.14 kg |
| Warranty (In Months) | 18 |
| Electrical Shock Protection Class | class I conforming to IEC 60536, class I conforming to NF C 20-030 |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1024673016 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 8 kg CO2 eq., 8.2313227513 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Control Station Type | metal |
| Material | die cast zinc |
| Number Of Vertical Rows | 1 |
| Product Destination | for Ø 22 mm control and signalling units |
| Protective Treatment | TH |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Color Of Cover | grey RAL 7032) |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US |
| Cut-out Dimensions | Ø 22 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538100000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 8.4843347937 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2111017EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | die-cast empty control station |
|---|
| Range Of Product | Harmony XAP |
|---|
ETIM
| ETIM 8 | EC000200 |
|---|
| ETIM 9 | EC000200 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
