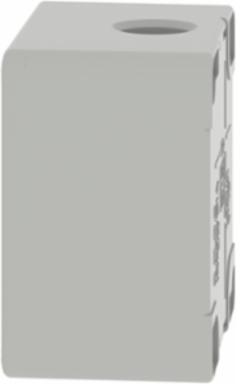

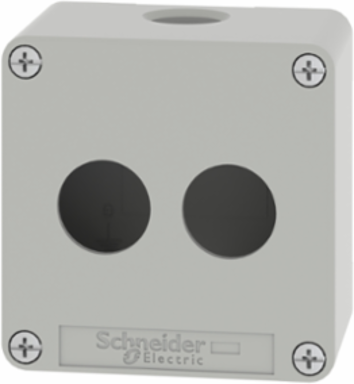

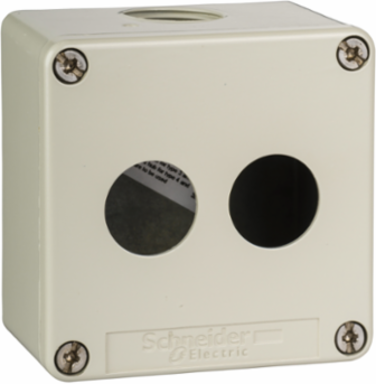

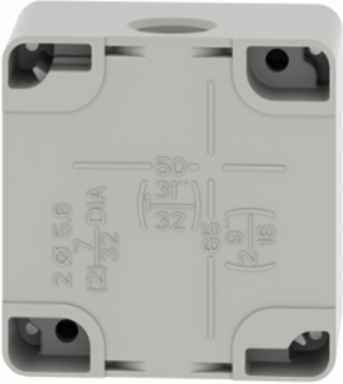

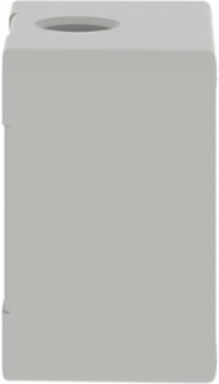

Schneider Electric XAPG19702 Harmony XAP Metal Control Station, 2 Cut-Outs, IP65, 80x80x51.5mm
- MPN: XAPG19702
- PPN: SCH-XAPG19702
CAD
$98.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPG19702 is an empty enclosure with grey color (RAL7032). It has 2 cut-outs of diameter 22mm for 2 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. It has a wide range of operating temperatures from -25°C to 70°C. Its dimensions are 80mm height, 80mm wide, 51.5mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 and XB5 range of control and signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Morocco
Physical Attributes
- Cad Overall Depth
- 51.5 mm
- Cad Overall Width
- 80 mm
- Color Of Cover
- grey RAL 7032)
Cad Overall Height80 mm
Color Of Base Of Enclosuregrey RAL 7032)
Important Information Attributes
- Cable Entry
- cable gland, 1 x cable gland
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0665758307, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.001565473, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 59.27
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- XAPG
- Device Short Name
- XAPG
- Number Of Horizontal Rows
- 1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- die-cast empty control station
- Range Of Product
- Harmony XAP
- Returnability
- Yes
- Software Version
- EIME v5.9.1
- Thread Type
- 3/4 NPT
- Color Of Base Of Enclosure
- grey RAL 7032)
- Pep Code
- ENVPEP2111017EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Number Of Cut-out
- 2 cut-outs
- Package Weight(Lbs)
- 516.0 g
- Warranty (In Months)
- 18
Electrical Shock Protection Classclass I conforming to IEC 60536, class I conforming to NF C 20-030
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0463799365
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.7257566138
Local Data StatusPublishable
Return IndicatorY
Future Msrp76.73
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Control Station Typemetal
Materialdie cast zinc
Number Of Vertical Rows2
Product Destinationfor Ø 22 mm control and signalling units
Protective TreatmentTH
Resistance To Chemical Agentsspecial treatment can be obtained on request
Sale Per Indivisible Quantity1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Color Of Covergrey RAL 7032)
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Cut-out DimensionsØ 22 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.840277854
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2111017EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2111017EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- die-cast empty control station
Range Of ProductHarmony XAP
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
