Schneider Electric XAPE905 Harmony XAP Protective Rear Cover IP65 for XAPE305, Insulated Material
- MPN: XAPE905
- PPN: SCH-XAPE905
CAD
$61.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

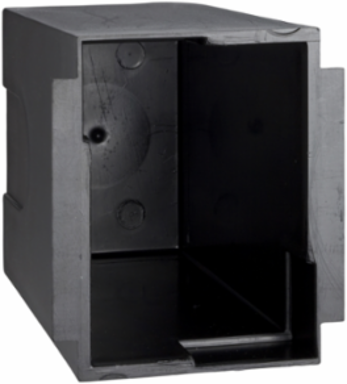

This Harmony XAPE protective rear cover for front plate used insulated material. It has a rectangular shape and it is compatible with front plate XAPE305. This empty flush mounted box is designed as a protective rear cover for your control stations. It uses insulating fiberglass material and it is ideal for finger protection. It is compatible with flush front plate XAPE305. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. It can be retrofitted with control stations to allow for finger protection. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for front plate XAPE305
- Product Mounting
- flush mounting
- Product Or Component Type
- protective rear cover
- Material
- insulated material
- Ip Degree Of Protection
- IP65 IEC 60529 || IP657 NF C 20-010
Range Of ProductHarmony XAP
Cable Entryknock-out cable entries
Resistance To Chemical Agentsgood resistant to acetone || good resistant to alcohols || good resistant to chloride and fluoride solvents || good resistant to diluted mineral acids || good resistant to oils and petrol || good resistant to organic acids || good resistant to salts
Device Short NameXAPE
Complementary
- Net Weight
- 0.08 kg
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Electrical Shock Protection Class
- class I IEC 60536 || class I NF C 20-030
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC || TH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
