Hammond Power Solutions TN2D0030KDKF Titan N 30kVA 480D→240Δ/120CT Delta-Delta vKF Case DQT5 (TN2D0030KDKF)
- MPN: TN2D0030KDKF
- UPC: 803423152406
- PPN: HPS-TN2D0030KDKF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

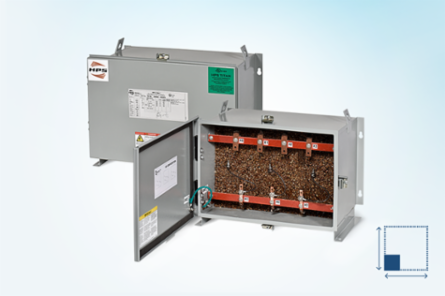

HPS Titan-N encapsulated three-phase distribution transformer for Class I Division 2 hazardous locations. Rated 30 kVA. Delta-Delta connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Class I Division 2 hazardous-location rated
Documentation & Downloads
Specifications
Identification
- Generation
- 2
- Phase Configuration
- Delta-Delta
- Secondary Voltage Code
- D
- Secondary Voltage (Decoded)
- 240Δ/120CT
Phase CodeD
Primary Voltage CodeK
Primary Voltage (Decoded)480D
Variant TailKF
Construction
- Case Style
- DQT5
- Wiring Diagram
- SCD 4.3
MountingF (Opt. W)
Physical
- Width
- 25.88 in (657 mm)
- Height
- 21.88 in (556 mm)
Depth16.50 in (419 mm)
Weight510 lb (230 kg)
Electrical
- Secondary Voltage
- 208Y/120
- kVA Rating
- 30
Frequency60 Hz
