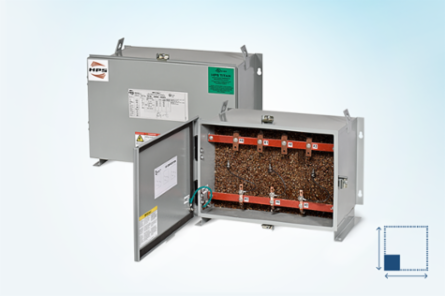

Hammond Power Solutions TN2A0030QKKF Titan N 30kVA V-Code QK Delta-WyeN vKF Case DQT5 (TN2A0030QKKF)
- MPN: TN2A0030QKKF
- UPC: 803423151409
- PPN: HPS-TN2A0030QKKF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Titan-N encapsulated three-phase distribution transformer for Class I Division 2 hazardous locations. Rated 30 kVA. Delta-WyeN connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Class I Division 2 hazardous-location rated
Documentation & Downloads
Specifications
Identification
- Generation
- 2
- Phase Configuration
- Delta-WyeN
- Secondary Voltage Code
- K
- Variant Tail
- KF
Phase CodeA
Primary Voltage CodeQ
Secondary Voltage (Decoded)480Y/277
Construction
- Case Style
- DQT5
- Wiring Diagram
- SCD 6.3
MountingF (Opt. W)
Electrical
- Secondary Voltage
- 208Y/120
- kVA Rating
- 30
Frequency60 Hz
Physical
- Width
- 25.88 in (657 mm)
- Height
- 21.88 in (556 mm)
Depth16.50 in (419 mm)
Weight510 lb (230 kg)
