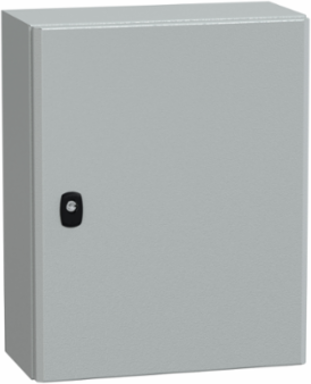

Schneider Electric NSYS3DEX5420 Spacial S3DEX ATEX Certified Wall-Mounted Steel Enclosure, 500 x 400 x 200 mm, IP66

MPN: NSYS3DEX5420
PPN: SCH-NSYS3DEX5420
UNSPSC: 39121323

$302.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

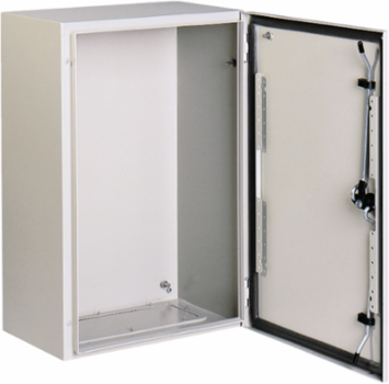

Spacial S3DEX wall mounted steel enclosure with plain door. 500 x 400 x 200 mm. ATEX certified application. Single piece body with clamped blind nut, without mounting plate. Gutter-shaped front rail double sheet thickness. Double bar lock. Steel made, epoxy-polyester powder finish. Protection IP 66 enclosures with single door, IK10, Grey RAL 7035.

Features

Steel wall-mounting enclosure designed for use in explosive atmospheres.
Plain door with double-bar lock, hinges, and reversible 120° opening.
Single-piece body with gutter-shaped front rail double sheet thickness.
Grey (RAL 7035) epoxy-polyester powder surface finish.
Easy maintenance with removable door.
ATEX certified for superior protection.
Accessible from the front for operation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	8580 g

Physical Attributes

Color	Gray RAL 7035)
Enclosure Nominal Width	400 mm

Enclosure Nominal Height	500 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 door, 1 lock, body with clamped blind nut
Carbon Footprint Of The End Of Life Phase C1 To C4	20 kg CO2 eq., 20.21322862212181
Carbon Footprint Of The Manufacturing Phase A1 To A3	42 kg CO2 eq., 41.89268276019105
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Marking	II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Name	PanelSeT S3DEX
Range	PanelSeT
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	81 kg CO2 eq.
Database Version	2023-02
Certificate Agency	EN 60079-0:2012EN 60079-7:2007EN 60079-31:2009
Customs Code	9403200090
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	17.034068625403023, 17 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.690406244760331, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	ATEX certified application
Door Type	Solid
Lock Type	double-bar lock
Material	steel
Number Of Doors	front face 1
Product Destination	for potentially explosive atmosphere
Product Or Component Type	compact enclosure
Removable Parts	door by hinges
Software Version	v6.1
Sustainable Packaging	No
Type Of Gland Plate	without gland plate
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	98

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Ip Degree Of Protection	IP66 IEC 60529 enclosures with single door)
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	80.83038625247622
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 4X/13
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
