PanelSeT S3DEX Steel Enclosure, 300x300x200mm, IP66, IK10, ATEX Certified
Schneider Electric

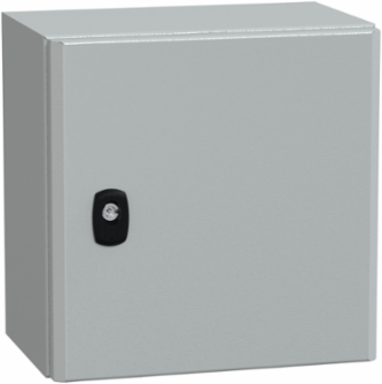

Schneider Electric NSYS3DEX3320 PanelSeT S3DEX Steel Enclosure, 300x300x200mm, IP66, IK10, ATEX Certified

  • MPN: NSYS3DEX3320
  • PPN: SCH-NSYS3DEX3320

CAD

$234.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Spacial S3DEX wall mounted steel enclosure with plain door. 300 x 300 x 200 mm. ATEX certified application. Single piece body with clamped blind nut, without mounting plate. Gutter-shaped front rail double sheet thickness. Double bar lock. Steel made, epoxy-polyester powder finish. Protection IP 66 enclosures with single door, IK10, Grey RAL 7035.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France

Physical Attributes

Color
Gray RAL 7035)
Enclosure Nominal Width
300 mm
Enclosure Nominal Height300 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 door, 1 lock, body with clamped blind nut
Carbon Footprint Of The End-of-life Phase [C1 To C4]
11 kg CO2 eq., 11.039532555158836
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
23 kg CO2 eq., 22.879849815181267
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Door Opening Side
reversible 120 °)
Energy Efficiency Optimized
False
Marking
II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
Mounting Plate Description
without mounting plate
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Name
PanelSeT S3DEX
Range
PanelSeT
Returnability
No
Surface Finish
epoxy-polyester powder
Total Lifecycle Carbon Footprint
44 kg CO2 eq.
Pep Code
ENVPEP1001004EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate Agency
EN 60079-0:2012EN 60079-7:2007EN 60079-31:2009
Package Weight(Lbs)
4.686 kg
Take-back
No
Customs Code
9403200090
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]9.303222095412421, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.9232218721383346, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device ApplicationATEX certified application
Door TypeSolid
Lock Typedouble-bar lock
Materialsteel
Number Of Doorsfront face 1
Product Destinationfor potentially explosive atmosphere
Product Or Component Typecompact enclosure
Removable Partsdoor by hinges
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Silicon Free
Yes
Environmental Disclosure
ENVPEP1001004EN
Ip Degree Of Protection
IP66 IEC 60529 enclosures with single door)
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint44.14582633789086
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 4X/13
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
compact enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
