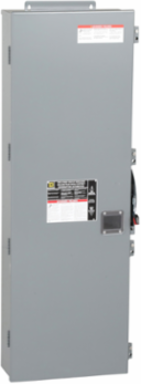

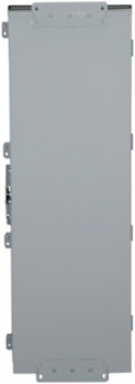

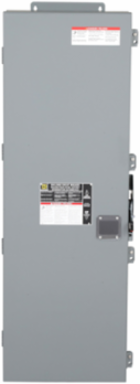

Square D L600AWKVW Circuit Breaker Enclosure, 250-600A, 3 Pole, Steel, NEMA 12/3R
- MPN: L600AWKVW
- UPC: 785901978572
- PPN: SCH-L600AWKVW
- UNSPSC: 39121318
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered by Schneider Electric, this circuit breaker enclosure is designed to accommodate efficient power distribution for applications demanding robust protection. Structured from durable steel, it features a capacity of 250-600A and three poles, making it suitable for a variety of industrial environments. With its NEMA 12/3R rating, this enclosure provides reliable performance and safeguards against dust and moisture, ensuring that your circuit breakers operate effectively in diverse conditions. This product is an essential component for maintaining safety and functionality in electrical systems.
Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Confidence and power reliability
- UL and CSA listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 210 mm |
| Weight | 49895 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Circuit Breaker Type | LGL, LLL, LRL, LDL, LJL |
| Carbon Footprint Of The Distribution Phase A4 | 14.41903593656458, 14 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0836920128662618, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1906 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Enclosure Material | steel |
| Number Of Poles | 3P |
| Product Destination | circuit breaker L-Frame 3P |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 377 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 518 mm |
| Customs Code | 7326908688 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | cUL, UL, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 71 kg CO2 eq., 71.38856614051107 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 291 kg CO2 eq., 291.43224815571244 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 1461 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 95 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 377.3235422456544 |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 3R/12 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1408006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Halogene Performance | Halogen free plastic parts product |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
Complementary Attributes
| Line Rated Current | 250-600 A |
|---|
