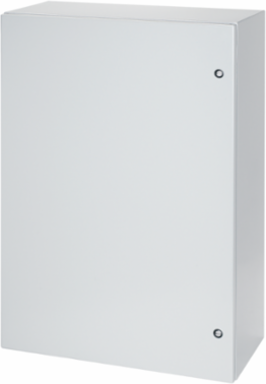

nVent Hoffman CSD12246LG Concept Enclosure 12 Inch x 24 Inch x 6 Inch, Steel, NEMA Type 12
- MPN: CSD12246LG
- UPC: 783510294533
- PPN: HOF-CSD12246LG
- UNSPSC: 39121324
CAD
$525.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD12246LG item measures 12.00x24.00x6.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- NEMA Rating
- 12 Indoor, dust-resistant
- Latch Quantity
- 1
- IP Rating
- IP66
- Sub Brand
- Concept
- Size
- 12.00x24.00x6.00 in
Height (H)305
Depth (D)152
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.52
Mounting (G x H)572 x 267
Latch TypeQuarter-Turn
Weight21.6
MaterialSteel
ColorGray
