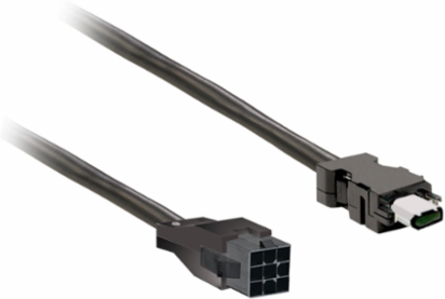

Schneider Electric VW3M8D1AR50 5 Meter Shielded Encoder Cable for BCH2 with SinCos Connection

MPN: VW3M8D1AR50
PPN: SCH-VW3M8D1AR50
UNSPSC: 26111515

$171.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This shielded encoder cable from Schneider Electric is specifically designed for seamless integration with BCH2 systems, featuring a SinCos connection. Spanning 5 meters, it provides reliable signal transmission while minimizing interference, ensuring optimal performance for your automation and control applications. As an essential accessory for motors and drives, this cable guarantees enhanced connectivity and efficiency, making it a vital component for those looking to maximize their operational capabilities.

Features

This genuine Schneider Electric connection accessory is engineered for seamless drop-in integration with the Lexium 28 motion control range. It bridges the feedback loop from your Lexium BCH2 servo motor directly to the CN2 plug on the LXM28 drive, eliminating wiring errors and saving critical deployment time during machine commissioning.
Specifically designed for high-accuracy applications, this cable is fully optimized for BCH2 motors equipped with a SinCos single-turn encoder. It reliably transmits position data between the motor sensors and the drive control system, supporting automatic motor identification and tuning to maximize automated machine efficiency.
Featuring robust integrated shielding, this premium cordset safeguards precise encoder feedback from electromagnetic interference (EMI) and harmonic noise. The shielded 5 x (2 x 0.13 mm2) core composition prevents signal corruption and unexpected drive faults, maintaining continuous runtime for critical palletizing and automated machinery.
To ensure secure, vibration-resistant machine connections, this assembly comes pre-terminated with a specialized 6-pin Firewire connector for the servo drive side and a heavy-duty 9-pin Molex connector for the servo motor side. These factory-molded industrial plugs prevent loose connections and pins from backing out, overcoming a notorious point of failure found in generic field-wired alternatives.
With a standard functional length of 5 meters (16.4 feet), this cordset provides the ideal physical span for clean cable-tray routing within compact machines and multi-axis control enclosures. The structured length minimizes excess slack or tight bending strain, promoting a neat, professional layout that satisfies strict industrial safety and cable management compliance.
Built with industrial sustainability in mind, this encoder cable is completely PVC-free and proactively compliant with EU RoHS declaration.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Tunisia

Physical Attributes

Cable Length	5 m

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Scope Perimeter	At least in Europe
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Device Application	for BCH2 with SinCos single turn encoder
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Lexium
Sustainable Packaging	No
Accessory / Separate Part Destination	from servo motor to servo drive
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Local Publishable Date	2026-08-06
Serviceability	No
Weee Scope	Out
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Cable Composition	5 x (2 x 0.13 mm²)
Electrical Connection	1 connector Firewire 61 connector Molex 9
Product Or Component Type	encoder cable
Returnability	Yes
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	encoder cable
Customs Code	8544429090

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
