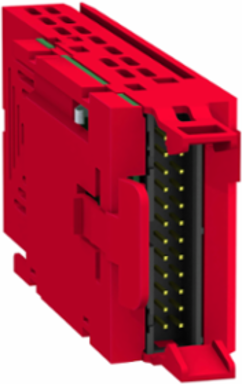

Schneider Electric VW3M3501 eSM safety card, Lexium 32, servo drive, 24V DC

eSM safety card, Lexium 32, servo drive, 24V DC
  • MPN: VW3M3501
  • PPN: SCH-VW3M3501

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$791.94/ EA

    Description

    This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

    Specifications

    Environment

    Standards
    IEC 61508 || ISO 13849-1 || IEC 62061

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1407005EN
    Pvc Free
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1407005EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Short-Circuit Protection
    yes on output
    Discrete Output Number
    7
    Reverse Polarity Protection
    yes on input
    Voltage State 1 Guaranteed
    >= 15 V
    Safety FunctionSOS (safe operating stop) || SLS (safe limited speed) || SS1 (safe stop 1) || STO (safe torque off) || SS2 (safe stop 2)
    Voltage State 0 Guaranteed<= 5 V
    Safety LevelSIL 3 IEC 61508 || SILCL 3 IEC 62061 || PL = e ISO 13849-1

    Specifications

    [Us] Rated Supply Voltage
    24 V DC 19-30 V
    Accessory / Separate Part Category
    communication option
    Product Or Component Type
    eSM safety card
    Accessory / Separate Part Type
    eSM safety card
    Discrete Input Number11
    Range CompatibilityLexium 32
    Product CompatibilityLexium 32
    Accessory / Separate Part Destinationservo drive
