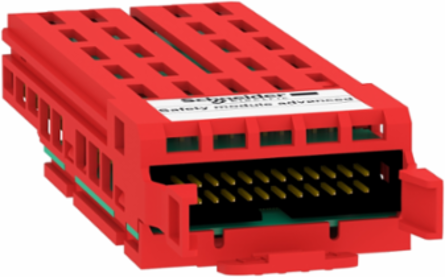

Schneider Electric VW3A3802 Safety Module, 24V DC, Max Load Capacitance 1 F, Max Switching Current 0.5 A

MPN: VW3A3802
PPN: SCH-VW3A3802

$493.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed to enhance operational safety, this safety module from Schneider Electric is engineered for integration in complex systems where reliable shutdown functionality is critical. Operating at 24V DC, it is tailored to manage a maximum load capacitance of 1 F and can handle a switching current of up to 0.5 A, making it suitable for various applications. This module is an essential component for ensuring the safe and efficient performance of machinery, providing peace of mind in environments where safety protocols must be strictly adhered to.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Complementary Attributes

Maximum Voltage Drop	<1 V at 0.5 A, <1 V at 0.5 A<1 V at 0.5 A, <1 V at 0.5 A
Maximum Switching Current	0.5 A

Maximum Load Capacitance	1 µF
Rated Voltage	24 V DC - 15...20 %

Important Information Attributes

Product Specific Application	material working, material handling, architecture without suspended/vertical or pulling loads
Residual Ripple	< 5 %, < 5 %
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Mounting Support	Integrated in drive
Product Or Component Type	safety module
Sustainable Packaging	No
Certificate Agency	IEC/EN 61800-5-2
Package Weight(Lbs)	223.000 g
Warranty (In Months)	18

Range Of Product	Altivar Process ATV900, Altivar Machine ATV340
Safety Function	SS1 (safe stop 1), SLS (safe limited speed), SMS (safe maximum speed), SBC (safe brake control)
Local Publishable Date	2026-04-30
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2211035EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2001
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Inductive Load	15 H for 100 mA0.6 H for 500 mA
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Pep Code	ENVPEP2211035EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2211035EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2211035EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211035EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
