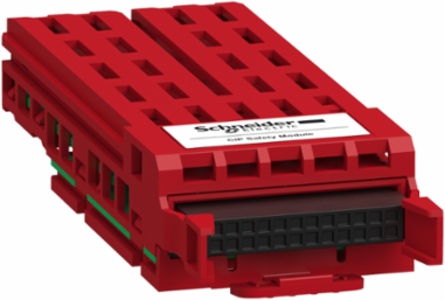

Schneider Electric VW3A3809 Safety over Ethernet IP option card, Altivar
- MPN: VW3A3809
- PPN: SCH-VW3A3809
CAD
$409.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safety module is an option for variable speed drives of Altivar range. It provides a fail-safe Ethernet connection between the drive and a Safey PLC using the Safety over Ethernet/IP protocol. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It includes the Safe Torque Off (STO) function SIL3/Ple. The CIP Safety module offers one Ethernet/IP (for CIP I/O) and 2 CIP Safety (one for each Safety input and Safety Output) connections. It allows Safety Open type 2a and type 2b communication protocols. It weights 0,150kg (0,331lb) Altivar Process drives include numerous advanced functions for the more complex applications in each market segment, the STO safety function is provided to help protect people and equipment. It conforms to ODVA CT18-ES test and the STO safety function is compliant with IEC/EN 61800-5-2 standard. The Altivar ATV900 drive must be equipped with an additional module support to be able to insert the CIP Safety module. Altivar Process ATV900 Drives with embedded services, high performance motor control, safety and application functionality to meet demanding applications including conveyors, cranes, mills and more in the Process Industry. Ideal for segments such as Mining & Metals, Oil & Gas, Food & Beverage and Hoisting, from 0.75kW to 2600kW.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, Philippines, United States |
|---|
| Depth | 23.25 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Product Specific Application | material working, material handling, architecture without suspended/vertical or pulling loads |
| Safety Level | type 2a, type 2b |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.069065 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.03 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-01-30 |
| Stocking Flag | N |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Use Carbon Footprint | 111.3 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2211035EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2248 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Mounting Support | Integrated in drive |
| Product Or Component Type | CIP Safety over Ethernet IP module |
| Safety Function | STO (safe torque off) |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2211035EN |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To incorporate safety functions over communication Ethernet IP to the Altivar Speed Drive (ATV900 and ATV340 series) during 20 years.& 10The usage profile taken into account is 100% uptime in use phase. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 188.5152 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| Height Nominal | 109 mm |
| Certificate Agency | ODVA CT18-ES |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 5537.8 |
| Air Pollution (M3) Operational Energy Use [B6] | 4773.4 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 1250.5 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1146.5 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 10.03 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 23.115 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 419.16 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 416.33 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 116.65 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 0.1462 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 120.89 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 165.59 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 161.35 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.6467 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 115 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 0.1462 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3.8388 |
| Water Pollution (M3) Total Life Cycle | 5552.9 |
| Water Pollution (M3) Distribution [A4] | 3.3736 |
| Water Pollution (M3) End Of Life [C1-c4] | 2.7244 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Range Of Product | Altivar Machine ATV340, Altivar Process ATV900 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.020515, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0066608, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 111 kg CO2 eq., 111.3 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Manufacturing Carbon Footprint | 10.03 |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.3 |
| Total Lifecycle Carbon Footprint | 121 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 11 |
| Width Nominal | 41 mm |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 121.43 |
| Package Weight(Lbs) | 165.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 762.08 |
| Air Pollution (M3) End Of Life [C1-c4] | 1.0597 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 103.49 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 121.43 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 111.3 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 22.966 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 2.8168 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 2210.8 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2093.6 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 2376.3 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 2254.9 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 4.2437 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.6467 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2209.1 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2093.6 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 165.19 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 161.35 |
| Water Pollution (M3) Manufacturing [A1-a3] | 875.51 |
| Water Pollution (M3) Operational Energy Use [B6] | 4670.3 |
| Customs Code | 4901100040 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 121.43 |
| Environmental Disclosure | ENVPEP2211035EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2211035EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2211035EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Range Of Product | Altivar Machine ATV340, Altivar Process ATV900 |
|---|
| Product Or Component Type | CIP Safety over Ethernet IP module |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Accessories
