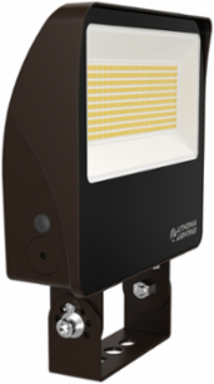

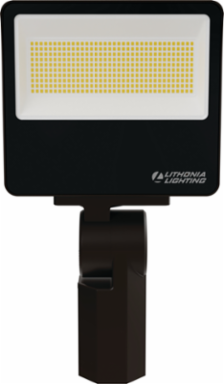

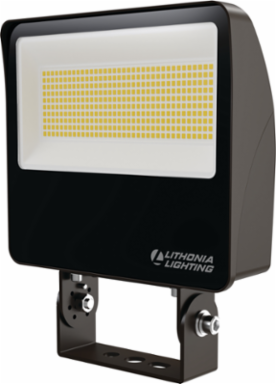

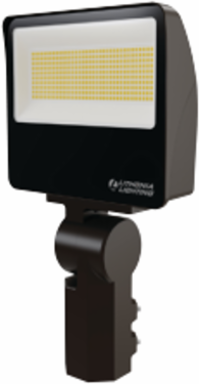

Acuity Brands ESXF3 ALO SWW2 UVOLT YS DDB ESXF3, Adjustable light output, Switchable CCT- 3000K, 4000K, and 5000K, 120-347V, YS, Dark bronze finish
- MPN: ESXF3 ALO SWW2 UVOLT YS DDB
- UPC: 196182393273
- PPN: LTH-ESXF3 ALO SWW2 UVOLT YS DDB
- UNSPSC: 39111611
CAD
$360.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Lithonia Lighting® ESXF LED all-in-one floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box.
Features
- The Lithonia Lighting® ESXF LED all-in-one floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box.
- DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
- ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 8500, 10500, and 14000 lumens
- SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
- RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
- VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
- INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
- INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting, models ship standard with 18” SO cord
- CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
- WARRANTY: Five-year limited warranty
Documentation & Downloads
Specifications
Key Specifications
| Product Type | Floodlight |
|---|---|
| Standard | C-UL-US |
| Lumens | 10,000 LM,10,500 LM,13,600 LM,14,000 LM,14,500 LM,8000 LM,8500 LM |
| Lamp Type | LED - Static |
| Mounting | Tenon Slipfitter,Yoke |
| Color Temperature | 3000 K,4000 K,5000 K,Variable |
| Material | Aluminum |
| Finish | Gloss |
| Maximum Operating Temperature | 35 |
| Style | Contemporary |
| Height | 2.84 in |
| Weight | 6.48 lbs |
| Country of Origin | Vietnam |
| Application | Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports and Recreation |
|---|---|
| Voltage Rating | 120-347 |
| Color | Bronze |
| Shape | Rectangular |
| Environmental Conditions | Outdoor |
| Wattage | 100 |
| Color Rendering Index (CRI) | 80 |
| Average Life | 50,000 hrs |
| Lamp Included | Yes |
| Warranty | 5 Year Limited |
| Length | 16.07 in |
| Width | 8.95 in |
