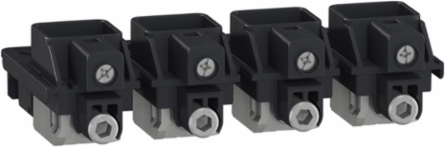

Schneider Electric LV426975 Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 4 pole, qty 1, EverLink, control wire terminal

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 4 pole, qty 1, EverLink, control wire terminal
  • MPN: LV426975
  • PPN: SCH-LV426975

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$255.77/ EA

Description

This is a an Everlink Connection accessory for PowerPacT B-Frame circuit breakers. This cable connector are for 4 pole circuit breakers. This connector comes in a set of one. This connector can be installed upstream or downstream. This connector has a rated current of 15-125A for copper and 15-100A aluminum. These connectors have a screw terminal. With a cable cross section of 2.5-95 mm².

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1610005EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product

Specifications

Poles Description
4P
Accessory / Separate Part Type
connection kit
Product Or Component Typemechanical lug

Complementary

Conductor Material
steel
Quantity Per Set
set of 1
[In] Rated Current
15-125 A copper || 15-100 A aluminium
Current Of Common10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded || 10 A 1.5-6 mm² AWG 20...AWG 10), rigid
Location Of Connectiondownstream || upstream
Connections - Terminalsscrew terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded
