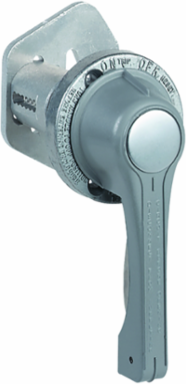

Killark EXH1A10 4 Pole 150 Amp Circuit Breaker, 10 Inch Deep Boxes, NEMA 3, 4X, 316 SS Shaft
- MPN: EXH1A10
- UPC: 783936118529
- PPN: HBL-EXH1A10
- UNSPSC: 39121321
CAD
$2172.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EXH Series,4 Pole 150 Amp Frame Breaker In 10" Deep Boxes Class I, II, III, CDEFG, UL/CSA, 316 SS Shaft, Cast Alum Handle Type 4X IP66, Circuit Breaker Handle
Features
- Circuit breaker handle.
- Factory or field installed in a 3/4” NPSM opening.
- Has provision for Lock-On and Lock-Off with up to three padlocks.
- Consists of an external handle mechanism with through-the-enclosure shaft, internal toggle mechanism, and universal breaker pan.
- Copper free aluminum with 316 stainless steel shaft and sprongs.
- O-ring 70 durometer nitrile.
- Extruded aluminum bodies, stainless steel pins and stainless steel hardware.
- Factory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Type
- Replacement Handle
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CIR BREAK HANDLE ASSEM 10"BOX
- Harmonization Code
- 8538908180
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D252
- Gross Weight with Packaging
- 3
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936118529
- NAICS Code
- 3359326103
Width2.281 in
ApplicationFor use with B7E, DB, EXB, XJB Series enclosures. Used to activate circuit breakers and motor circuit protectors from front cover.
Special FeaturesFactory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE150827
SeriesEXH Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
