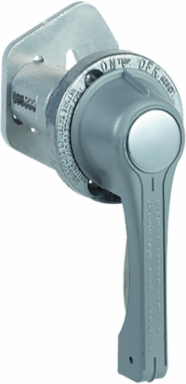

Killark EXH1A8 4 Pole 150 Amp Circuit Breaker Handle in 8 Inch Deep Box, Gray, 4.5 Inch x 1 Inch x 6.5 Inch
Killark EXH1A8 4 Pole 150 Amp Circuit Breaker Handle in 8 Inch Deep Box, Gray, 4.5 Inch x 1 Inch x 6.5 Inch
- MPN: EXH1A8
- UPC: 783936118512
- PPN: HBL-EXH1A8
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2064.32/ EA
Description
EXH Series,4 Pole 150 Amp Frame Breaker In 8" Deep Boxes Class I, II, III, CDEFG, UL/CSA, 316 SS Shaft, Cast Alum Handle Type 4X IP66, Circuit Breaker Handle
Features
- Circuit breaker handle.
- Factory or field installed in a 3/4” NPSM opening.
- Has provision for Lock-On and Lock-Off with up to three padlocks.
- Consists of an external handle mechanism with through-the-enclosure shaft, internal toggle mechanism, and universal breaker pan.
- Copper free aluminum with 316 stainless steel shaft and sprongs.
- O-ring 70 durometer nitrile.
- Extruded aluminum bodies, stainless steel pins and stainless steel hardware.
- Factory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Specifications
Specifications
- Size
- 4.5 in x 1 in x 6.5 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 4.5 in
- Application
- For use with B7E, DB, EXB, XJB Series enclosures. Used to activate circuit breakers and motor circuit protectors from front cover.
- Type
- Replacement Handle
- Description - Invoice
- CIR BREAK HANDLE ASSEM 8"BOX
- Harmonization Code
- 8538909999
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D252
- Gross Weight with Packaging
- 3
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Special FeaturesFactory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Country of OriginUnited States
Dimensions4.5 in x 1 in x 6.5 in
Height6.5 in
Width1 in
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE150827
SeriesEXH Series
Carton - SCC-14 Next Lower Level Sub Pack00783936118512
Certifications
- EU RoHS Indicator
- Contact Manufacturer
