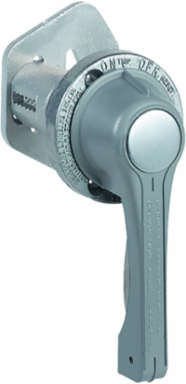

Killark EXH1B8 4 Pole 250 Amp Circuit Breaker Handle, 8 Inch Deep Box, Copper-Free Aluminum
Killark EXH1B8 4 Pole 250 Amp Circuit Breaker Handle, 8 Inch Deep Box, Copper-Free Aluminum
- MPN: EXH1B8
- UPC: 783936118536
- PPN: HBL-EXH1B8
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$969.57/ EA
Description
EXH Series,4 Pole 250 Amp Frame Breaker In 8" Deep Boxes Class I, II, III, CDEFG, UL/CSA, 316 SS Shaft, Cast Alum Handle Type 4X IP66, Circuit Breaker Handle
Features
- Circuit breaker handle.
- Factory or field installed in a 3/4” NPSM opening.
- Has provision for Lock-On and Lock-Off with up to three padlocks.
- Consists of an external handle mechanism with through-the-enclosure shaft, internal toggle mechanism, and universal breaker pan.
- Copper free aluminum with 316 stainless steel shaft and sprongs.
- O-ring 70 durometer nitrile.
- Extruded aluminum bodies, stainless steel pins and stainless steel hardware.
- Factory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Specifications
Specifications
- Size
- 4.5 in x 1 in x 6.5 in
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- US
- Each - Width
- 1.000 in
- Height
- 6.5 in
- Width
- 1 in
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E150827
- Series
- EXH Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936118536
Special FeaturesFactory or field installed in a 3/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
ColorGray
Dimensions4.5 in x 1 in x 6.5 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length4.5 in
ApplicationFor use with B7E, DB, EXB, XJB Series enclosures. Used to activate circuit breakers and motor circuit protectors from front cover.
TypeReplacement Handle
Description - InvoiceCIR BREAK HANDLE ASSEM 8"BOX
Harmonization Code8538909999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging3.5
MaterialCopper-free aluminum
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
