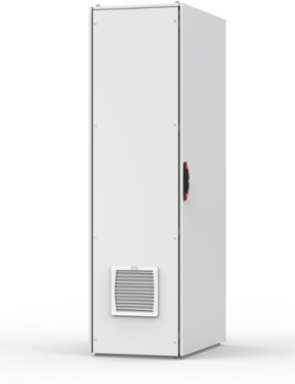

nVent Hoffman EFA220R5 Exhaust Filter IP54, 177x177x34mm, Thermoplastic, G4 Filtration

MPN: EFA220R5
UPC: 783510475123
PPN: HOF-EFA220R5

$123.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This vertical exhaust filter, EFA, with a IP 54 protection degree, is easy to install thanks to its click-in feature. This Exhaust Filter, EFA, EFA220R5 item measures 177x177x34mm has a material of Thermoplastic color Light Gray, finish Smooth.

Features

Description: Exhaust filter to be used for natural ventilation, or for forced ventilation working with filter fans EF. nVent HOFFMAN exhaust filters save us time because are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement.
Material: Front cover made of injection-moulded thermoplastic, self-extinguishing, UL94V0.
Temperature range: -40 °C to +55 °C.
Protection: IP 54, TYPE 12.
Approvals: CE, EAC, cRUus_UL Recognized.
Pack quantity: One exhaust filter.
Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure
The click-in feature reduces the customer's labour cost due to the ease of installation
To guarantee natural ventilation, install at least two exhaust filters
Forced ventilation can be achieved by adding filter fans, EF
Filter mat (EN779): EFA100R5, EFA200R5, EFA220R5, EFA250-300R5 - G4; EFA500-700R5 - G3
Filtration efficiency (%): >90
