nVent Hoffman EFA250-300R5 Exhaust Filter IP54, 223x223mm, Thermoplastic, Grit G4

MPN: EFA250-300R5
UPC: 783510475161
PPN: HOF-EFA250-300R5

$143.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

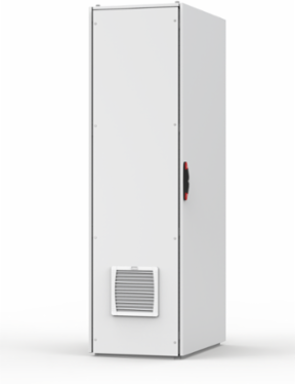

This vertical exhaust filter, EFA, with a IP 54 protection degree, is easy to install thanks to its click-in feature. This Exhaust Filter, EFA, EFA250-300R5 item measures 223x223x38mm has a material of Thermoplastic color Light Gray, finish Smooth.

Features

Description: Exhaust filter to be used for natural ventilation, or for forced ventilation working with filter fans EF. nVent HOFFMAN exhaust filters save us time because are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement.
Material: Front cover made of injection-moulded thermoplastic, self-extinguishing, UL94V0.
Temperature range: -40 C to +55 C.
Protection: IP 54, TYPE 12.
Approvals: CE, EAC, cRUus_UL Recognized.
Pack quantity: One exhaust filter.
Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure
The click-in feature reduces the customer's labour cost due to the ease of installation
To guarantee natural ventilation, install at least two exhaust filters
Forced ventilation can be achieved by adding filter fans, EF
Filter mat (EN779): EFA100R5, EFA200R5, EFA220R5, EFA250-300R5 - G4; EFA500-700R5 - G3
Filtration efficiency (%): >90

Documentation & Downloads

Specifications

Additional

Protection	IP54, Type 12
Material	Thermoplastic, UL94V0
Approvals	CE, EAC, cRUus UL Recognized
Color	Light Gray, RAL 7035
Cutout Size	223 x 223 mm
Works With	Climate Control
