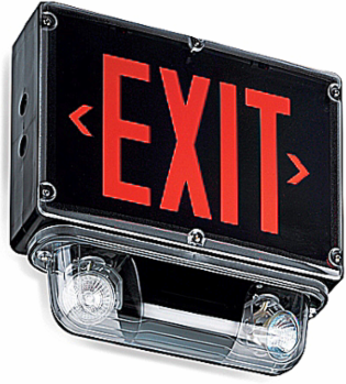

Thomas & Betts BBSVX12N1RDA4X2LACW4 1RDA4X2LACW Exit Combination Unit 12W, MR16 LED, 12-5/8 Inch Height x 13-1/4 Inch Width
- MPN: BBSVX12N1RDA4X2LACW4
- UPC: 782683390134
- PPN: T-B-BBSVX12N1RDA4X2LACW4
CAD
$603.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Exit Combination Unit, Battery Type: nickel-cadmium, Battery Wattage: 12W, 120/277VAC, Voltage DC: 6V, Unit Type: wet/damp locations, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Housing Colour: black, Faceplate Colour: black, Legend Colour: red, single face, diagnostics, audible, cold weather (-40°F/-40°C), Spec Grade: industrial, self-powered, Head Style: shielded, Battery Run Time (Minimum): 90 minutes
Features
- Each unit comes with two (2) MR16 high intensity lamps (standard). Fully fieldadjustable lamp head assembly offers the option of selecting either a halogen lamp or a high efficiency white LED light source for optimum illumination over the path of egress. Exit light source LED
- This circuitry is programmed to ensure the exit combination unit’s readiness and reliability by continuously monitoring every critical function of the unit. If a problem occurs, a single “Service Required” indicator illuminates immediately. A detailed diagnostic display that will further indicate the nature of the fault is located on the inside of the exit sign, out of sight from the general public. The self test will check the unit for a minimum of 30 seconds every 30 days, 30 minutes every 60 days and 90 minutes annually. PulsePlus Charger circuitry offers 120/277 volt input 60 Hz, 0.3/0.15 Amps (other inputs available), fused output circuit(s), dual diagnostic indicator lights, temperature compensated charger, sealed relay, low voltage battery disconnect, brownout protection and lockout (automatic battery connect). Magnetically operated test switch
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Emergi-Lite
- Application
- For harsh environment
- Wattage
- 12W
- Battery Runtime
- 90 Minutes
- Lamp Type
- MR16 LED
- Housing Color
- Black
- Background Color
- Black
- Size
- 12-5/8 Inches Height x 13-1/4 Inches Width x 4-5/8 Inches Depth
- Mounting
- Wall, end or ceiling
IGCC3938 Combo light unit exit
TypeExit Combination Unit
StandardUL
Voltage Rating120/277VAC, 6VDC
BatteryNickel-Cadmium
Number Of Lamps2
Letter ColorRed
LegendOn
MaterialRugged PVC body / polycarbonate cover
Lamp Wattage4W
Packaging
- Outer Quantity
- 1
- Weight Uom
- 11 lbs. Each
Outer Dimensions (inches)1x1x1
