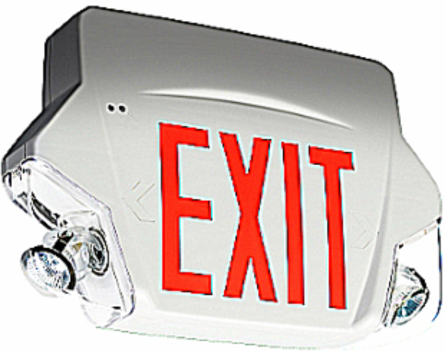

Lumacell 12H5GRA12LD7W3AT Exit Combination Unit
- MPN: 12H5GRA12LD7W3AT
- UPC: 062461631964
- PPN: T-B-12H5GRA12LD7W3AT
CAD
$1050.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Exit Combination Unit, Battery Type: NiMH, Voltage DC: 12V, Battery Wattage: 50W, single face ceiling or wall mount, 120/347VAC, Legend Colour: red, auto-diagnostics, non-audible, Colour: factory white, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 4W, Head Style: shielded, with canopy, Battery Run Time: 30 minutes
Features
- One-pack combination of battery unit and exit sign, a compact and contemporary design
- Durable injection-molded thermoplastic housing with push-to-snap design
- Comes with the Lumacell Grande EZ2 canopy and field-selectable snap in/out chevrons for quick and easy installation
- Long-life LED light source of ALINGAP technology assures low maintenance cost and is warrantied for ten (10) years
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 4W
- Colour housing
- White
- Voltage type
- AC/DC
- Width
- 432mm
Lamp typeLED exchangeable
Material housingPlastic
Battery qualityNiMH
Nominal voltage120-347V
Height/depth315mm
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 8.5 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Lumacell
- Application
- Institutional, Industrial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Letter Color
- Red
- Size
- 12-3/8 Inches Height x 17 Inches Width
- Mounting
- Ceiling or wall
- Lamp Wattage
- 4W
IGCC3938 Combo light unit exit
TypeExit Combination Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
BatteryNiMH
Number Of Lamps2
LegendOn
MaterialFrame/Faceplate: Thermoplastic
ColorFactory white
