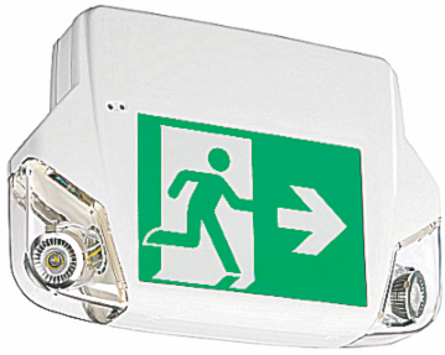

Ready-Lite 12L50-2LD10-ULT12W Exit Combination Unit, 12-3/8 Inch Height x 17 Inch Width, 50W Battery
- MPN: 12L50-2LD10-ULT12W
- UPC: 624050094903
- PPN: T-B-12L50-2LD10-ULT12W
CAD
$700.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Exit Combination Unit, single face ceiling or wall mount, Battery Type: lead-calcium, 120/277VAC, Voltage DC: 12V, Battery Wattage: 50W, self-powered, Colour: factory white, Legend Colour: red, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Head Style: shielded, Battery Run Time: 30 minutes
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Remote load capacity up to 92W when using LED lamp option
- Comes standard with non-audible auto-diagnostics
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Ready-Lite
- Application
- Institutional, Industrial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Frame/Faceplate: Thermoplastic
- Color
- Factory White
IGCC3938 Combo light unit exit
TypeExit Combination Unit
StandardCSA
Voltage Rating120V/277VAC, 12VDC
BatteryLead-calcium
Number Of Lamps2
Size12-3/8 Inches Height x 17 Inches Width
MountingWall or ceiling
Lamp Wattage6W
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 11 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Material housing
- Plastic
- Battery quality
- Lead
- Nominal voltage
- 120-277V
- Height/depth
- 315mm
Lamp power6W
Colour housingWhite
Voltage typeAC/DC
Width432mm
