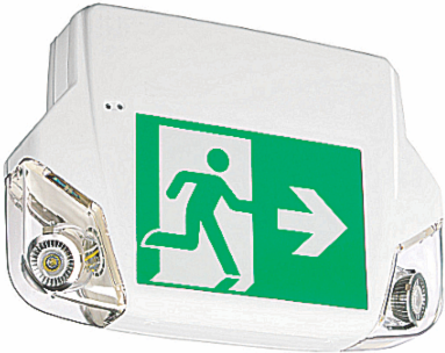

Lumacell 12L5GRAPU2LD10W2 Pictogram Combination Unit
- MPN: 12L5GRAPU2LD10W2
- UPC: 624616353185
- PPN: T-B-12L5GRAPU2LD10W2
CAD
$743.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pictogram Combination Unit, universal, 2 faces backplate and canopy, Colour: factory white, 120/277VAC, diagnostics, non-audible, Battery Type: lead-calcium, Voltage DC: 6V, Battery Wattage: 50W, self-powered, Head Style: shielded, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Battery Run Time (Minimum): 30 minutes, with canopy
Features
- One-pack combination of battery unit and Pictogram Sign, a compact and contemporary design
- Supplied standard with two (single face) or three pictogram films (universal face) for direction selection
- Twin LED lights provide up to 89 feet of egress illumination on a 6-foot wide path
- Long-life white LED light sources is warrantied for ten (10) years
- Remote load capacity: one unit equipment with LED remote lights covers up to 712 feet (217m) of egress illumination
- Remote load capacity: one unit equipment with LED
Specifications
European Specifications (ETIM)
| ETIM | EC001957 Emergency luminaire |
|---|---|
| Lamp power | 6W |
| Colour housing | White |
| Voltage type | AC/DC |
| Width | 432mm |
| Lamp type | LED exchangeable |
|---|---|
| Material housing | Plastic |
| Battery quality | Lead |
| Nominal voltage | 120-347V |
| Height/depth | 315mm |
North American Specifications (UNSPSC)
| UNSPSC | 39111707 Combo light unit exit |
|---|---|
| Brand Name | Lumacell |
| Application | Institutional, Industrial, Hospitality |
| Wattage | 50W |
| Battery Runtime | 30 minutes |
| Lamp Type | MR16 LED |
| Legend | On |
| Material | Frame/Faceplate: Thermoplastic |
| Color | Factory white |
| IGCC | 3938 Combo light unit exit |
|---|---|
| Type | Pictogram Combination Unit |
| Standard | CSA |
| Voltage Rating | 120/347VAC, 12VDC |
| Battery | Lead-calcium |
| Number Of Lamps | 2 |
| Size | 12-3/8 Inches Height x 17 Inches Width |
| Mounting | Universal |
| Lamp Wattage | 6W |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 4 |
| Weight Uom | 11 lbs. Each |
| Inner Dimensions (inches) | 1x1x.1 |
|---|---|
| Outer Dimensions (inches) | 1x1x1 |
